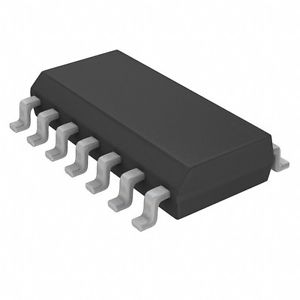

PHILIPS 74HC125D-PBF Buffer / Line Driver, Non-Inverting, 3-State, 4 Gate, 1 Input, 2V to 6V, SOIC-14
The 74HC125D is a quad buffer/line driver with 3 state outputs controlled by output enable inputs in 14 pin SOIC package. A HIGH on output enable inputs causes outputs to assume high impedance OFF state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- Supply voltage range from 2V to 6V
- Complies with JEDEC standard JESD 7A
- CMOS level input
- Ambient temperature range from -40°C to 125°C
- Features ESD protection
Features
- Complies with JEDEC standard no. 7A
- Input levels:
- The 74HC125: CMOS levels
- The 74HCT125: TTL levels
- ESD protection:
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
