Description

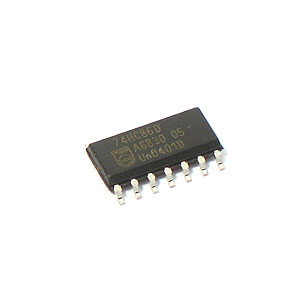

Philips / NXP Semiconductor 74HC86D XOR Gate, HC Family, 4 Gate, 2 Input, 5.2 mA, 2V to 6V, SOIC-14
The 74HC86; 74HCT86 is a quad 2-input EXCLUSIVE-OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
The 74HC86D is a high-speed Si-gate CMOS Device that comply with JEDEC standard number 7A. They are pin compatible with low-power Schottky TTL (LSTTL). The 74HC86 provides a 2-input exclusive-OR function.
- CMOS Input level
- ±1µA Input leakage current
- 40µA Supply current
Applications
Industrial
