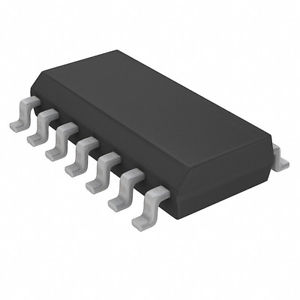

PHILIPS 74HCT02D NOR Gate 4-Element 2-IN CMOS 14-Pin SO
PHILIPS 74HCT02D NOR Gate 4-Element 2-IN CMOS 14-Pin SO - Image 2
  1. PHILIPS 74HCT02D NOR Gate 4-Element 2-IN CMOS 14-Pin SO
  2. PHILIPS 74HCT02D NOR Gate 4-Element 2-IN CMOS 14-Pin SO - Image 2

PHILIPS 74HCT02D NOR Gate 4-Element 2-IN CMOS 14-Pin SO

74HCT02D PHILIPS IC NOR Gate IC 4 Channel 14-SO, 2 Input, 4 mA, 4.5 V to 5.5 V, SOIC-14

ENQUIRY!
SKU: 74HCT02D Category: Tags: , , Brand:

Description

PHILIPS – PHIL 74HCT02D NOR Gate 4-Element 2-IN CMOS 14-Pin SO Bulk 57/TUBE

The 74HC02; 74HCT02 is a quad 2-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

The 74HCT02D is a quad 2-input NOR Gate with TTL input switching levels. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
  • Complies with JEDEC standard no. 7A
  • ESD protection – HBM JESD22-A114F exceeds 2000V, MM JESD22-A115-A exceeds 200V

Applications

Industrial

Manufacturer Part Number: 74HCT02D
NXP
