Description
PHILIPS BAS28-T/R General Purpose, Power, Switching SW 75V 215MA High-speed SOT143B 7″” T/R OF 3K PIECES
Part #: BAS28T/R
Part Category: Diodes
Manufacturer: NXP
Description: 0.215A, 85V, 2 ELEMENT, SILICON, SIGNAL DIODE
SPECIFICATIONS
Mfr Package Description PLASTIC PACKAGE-4
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Discontinued
Diode Type RECTIFIER DIODE
Case Connection CATHODE
Configuration SEPARATE, 2 ELEMENTS
Diode Element Material SILICON
Forward Voltage-Max (VF) 1.25 V

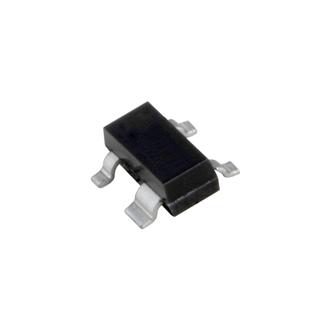

The BAS28 consists of two high-speed switching diodes, fabricated in planar technology, and encapsulated in the small plastic SMD SOT143 package. The diodes are not connected.
Product Attributes
Categories Discrete Semiconductor Products
Diodes – Rectifiers – Arrays
Packaging Cut Tape (CT)
Diode Configuration 2 Independent
Diode Type Standard
Voltage – DC Reverse (Vr) (Max) 75V
Current – Average Rectified (Io) (per Diode) 215mA (DC)
Voltage – Forward (Vf) (Max) @ If 1.25V @ 150mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4ns
Current – Reverse Leakage @ Vr 1µA @ 75V
Operating Temperature – Junction 150°C (Max)
Mounting Type Surface Mount
Package / Case TO-253-4, TO-253AA
Supplier Device Package SOT-143B
Base Part Number BAS28
Manufacturer Part Number: BAS28T/R
Philips
