Description

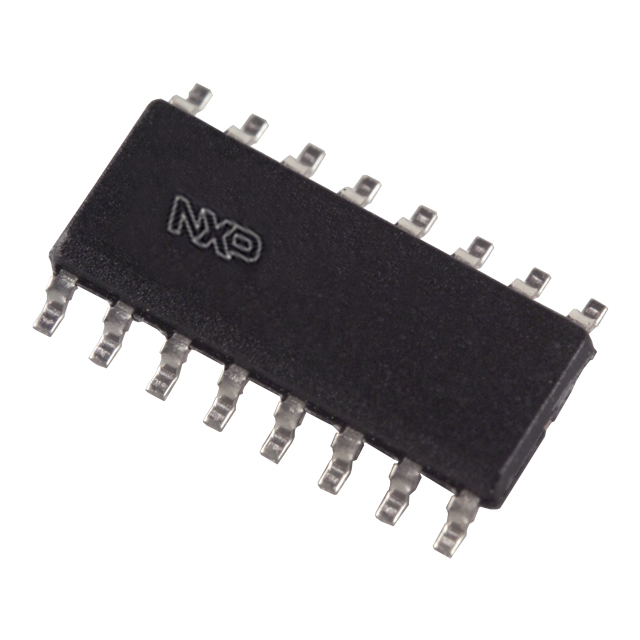

PHILIPS N74F157AD F/FAST SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16
Specifications
Manufacturer: NXP
Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
Product: Decoders, Encoders, Multiplexers & Demultiplexers
Logic Family: F
Number of Input Lines: 8 Input
Number of Output Lines: 4 Output
Propagation Delay Time: 6.5 ns at 5 V
Supply Voltage – Max: 5.5 V
Supply Voltage – Min: 4.5 V
Maximum Operating Temperature: + 70 C
Mounting Style: SMD/SMT
Package / Case: SO-16
Packaging: Reel
Brand: NXP Semiconductors
Function: Multiplexer
Height: 1.45 mm
High Level Output Current: – 1 mA
Length: 10 mm
Logic Type: Bipolar
Low Level Output Current: 20 mA
Minimum Operating Temperature: 0 C
Operating Supply Voltage: 5 V
Factory Pack Quantity: 2500
Technology: Bipolar
Width: 4 mm
Part # Aliases: N74F157AD,623
Unit Weight: 0.007079 oz
Family F/FAST
JESD-30 Code R-PDSO-G16
JESD-609 Code e4
Length 9.9 mm
Load Capacitance (CL) 50 pF
Logic IC Type MULTIPLEXER
Max I(ol) 20 mA
Moisture Sensitivity Level 1
Number of Functions 4
Number of Inputs 2
Number of Outputs 1
Number of Terminals 16
Operating Temperature-Max 70 °C
Operating Temperature-Min 0 °C
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 23 mA
Prop. Delay@Nom-Sup 7 ns
Propagation Delay (tpd) 7 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Subcategory Multiplexer/Demultiplexers
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm
Manufacturer Part Number: N74F157AD
Manufacturer: Philips
