Description

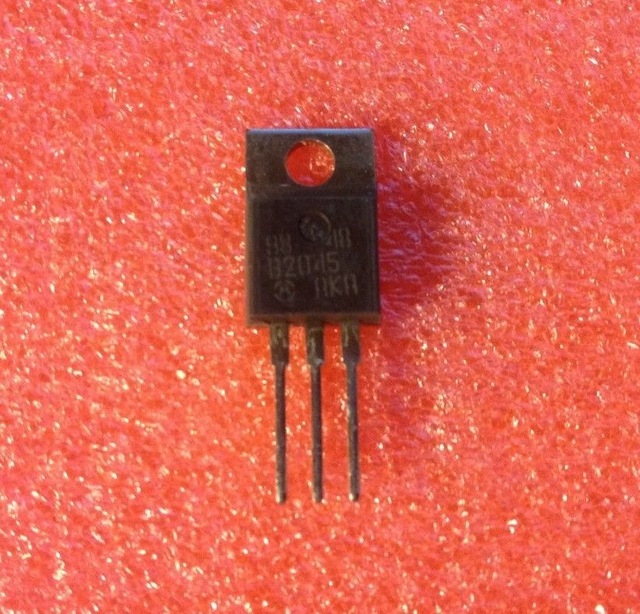

Philips / NXP Semiconductor PBYR2045CT Common Cathode Schottky Diode 45V 10A X 2 TO-220
Dual, common cathode schottky rectifier diodes in a conventional leaded plastic package and a surface mounting plastic package. Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies. The PBYR2045CT series is supplied in the SOT78 conventional leaded package. The PBYR2045CTB series is supplied in the SOT404 surface mounting package
Part Specification:
- Rectifier Type : Schottky Diode
- Configuration : Dual Common Cathode
- Peak Rep Rev Volt : 45V
- Avg. Forward Curr (Max) : 20A
- Rev Curr : 1.3mA
- Peak Non-Repetitive Surge Current (Max) : 150A
- Forward Voltage : 0.84V
- Package Type : TO-220AB
- Operating Temperature Classification : Military
- Mounting : Through Hole
- Pin Count : 3 +Tab
- Operating Temp Range : -65C to 150C
Manufacturer:Philips
Datasheet:NXP/9181.pdf
