Description

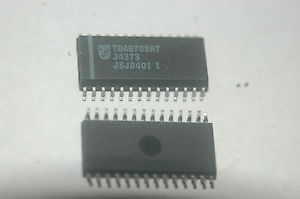

Philips / NXP Semiconductor TDA8708AT Analog Video Input Interface 32MHz SMD SOP-28
FEATURES· 8-bit resolution· Sampling rate to 32 MHz· Binary or two’s complement 3-state TTL outputs· TTL-compatible digital inputs and outputs· Internal reference voltage regulator· Power dissipation 365 mW (typical)· Input selector circuit (one out of three video inputs)· Clamp and Automatic Gain Control (AGC) functions for CVBS and Y signals· No sample-and-hold circuit required.· The TDA8708A has white peak control in modes 1 and 2 whereas the TDA8708B has control in mode 1 only. GENERAL DESCRIPTION APPLICATIONS· Video signal decoding
Manufacturer:NXP
Datasheet:NXP/TDA8708AT.pdf
