Description

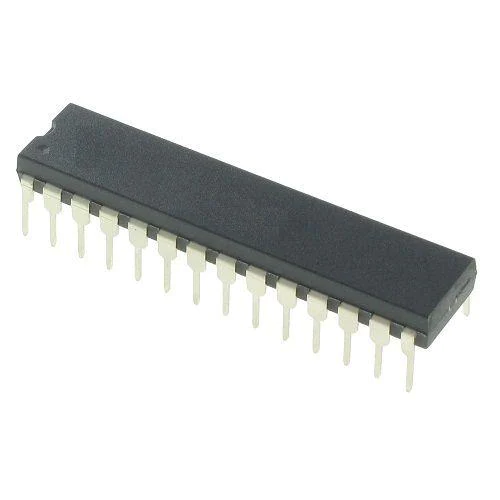

MICROCHIP-TECHNOLOGY – IC MCU 8-BIT CMOS FLASH W/ 10-BIT A/D 8KX14 EE 28DIP XTAL/RC EXTERNAL
This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F876A features 256 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 5 channels of 10-bit Analog-to-Digital (A/D) converter, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.
Specifications
Manufacturer: Microchip
Product Category: 8-bit Microcontrollers – MCU
RoHS: RoHS Compliant
Mounting Style: Through Hole
Package / Case: SPDIP-28
Core: PIC16
Data Bus Width: 8 bit
Maximum Clock Frequency: 20 MHz
Program Memory Size: 14 kB
Data RAM Size: 368 B
ADC Resolution: 10 bit
Operating Supply Voltage: 2 V to 5.5 V
Maximum Operating Temperature: + 85 C
Processor Series: PIC16
Packaging: Tube
Brand: Microchip Technology
Data RAM Type: RAM
Data ROM Size: 256 B
Data ROM Type: Flash
Interface Type: I2C, SPI, USART
Minimum Operating Temperature: – 40 C
Number of ADC Channels: 5
Number of I/Os: 22 I/O
Number of Timers/Counters: 3 Timer
Product: MCU
Program Memory Type: Flash
Series: PIC16F87
Factory Pack Quantity: 15
Supply Voltage – Max: 5.5 V
Supply Voltage – Min: 4 V
Features
- 28-pin Low Power Microcontroller
- Flash Program Memory: 8192 bytes
- EEPROM Data Memory: 256 bytes
- SRAM Data Memory: 368 bytes
- I/O Pins: 22
- Timers: Two 8-bit / One 16-bit
- A/D Converter: 10-bit Five Channel
- PWM: 10-bit Two Modules
- SSP: SPI and I²C Support
- USART: Full Duplex with 9-bit Address Detection
- External Oscillator: up to 20MHz
Manufacturer:Microchip Technology
Datasheet:39582b.pdf
