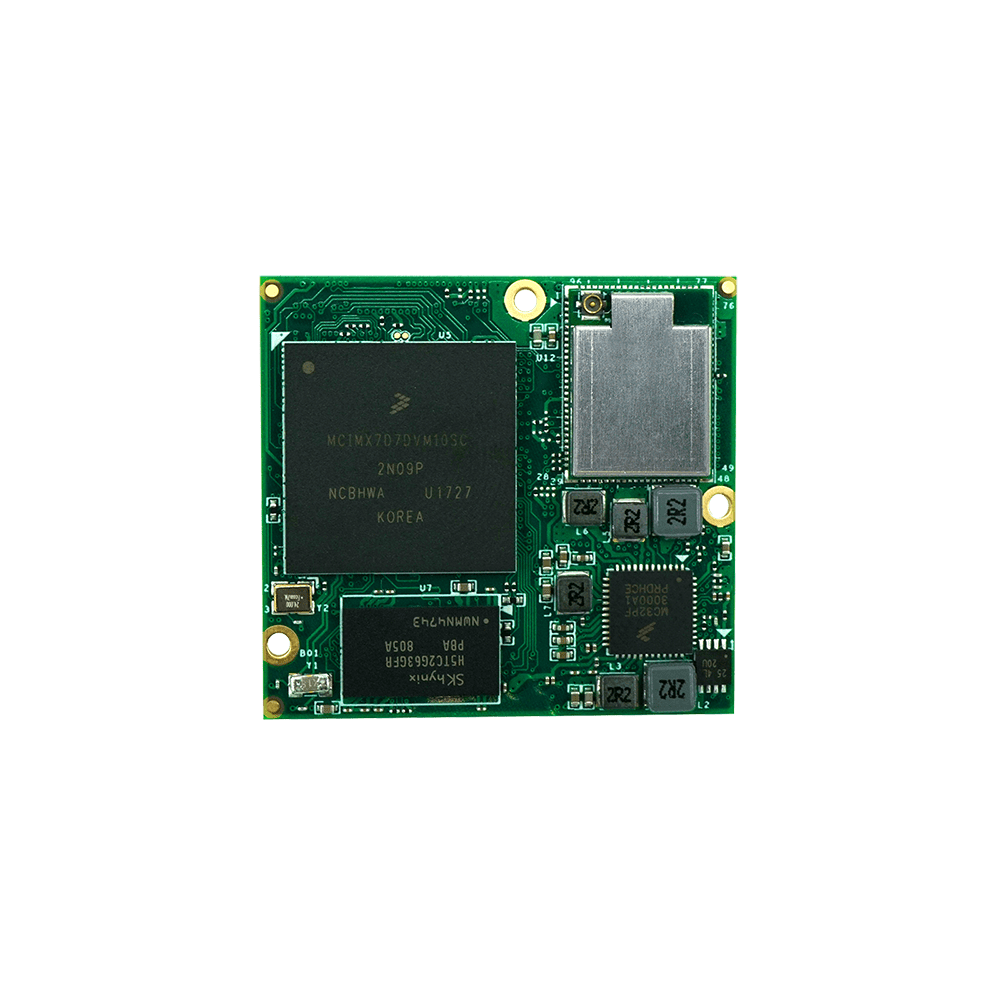

PICO-IMX7D10-R10-E16-9377 TechNexion PICO System-on-Module with NXP i.MX7 Dual 1GHZ SoC, 1GB of DDR3L memory, 16GB eMMC and QCA-9377 Wireless 802.11AC and Bluetooth RoHS
Core System Processor
NXP i.MX7 Dual Processor Speed
1.0 Ghz
Architecture
ARM Cortex-A7 + M4
PMIC
NXP PF3000
Memory
1GB DDR3L
Storage
16GB eMMC
Board-to-Board Connector
PICO 70-pin Hirose connectors
System on Module
PICO SOM
Connectivity
Network LAN
RGMII
Wi-Fi
Qualcomm Atheros QCA9377 Wi-Fi 5 802.11 a/b/g/n/ac
Bluetooth
Qualcomm Atheros QCA9377 Bluetooth
Antenna
MHF4 connector
Signaling
I/O
RGMII
RGB TTL
MIPI CSI
MIPI DSI
PCIe
USB
USB OTG
IS
SDIO
CAN
UART
SPI
IC
PWM
GPIO
Video
GPU Engine
Image re-sizing / rotation / overlay and CSC Pixel Processing Pipeline
Camera
MIPI CSI (2 lanes)
Audio
Audio Codec
On carrier board
Audio Interface
IS (2 channel)
Power Specifications
Power Input
5V DC +/-5%
Power Consumption
Depending on Configuration
Operating Systems
Standard Support
Linux
Yocto
Android
Ubuntu
Extended Support
Boot2Qt
Commercial Linux
FreeRTOS
Real Time OS
Environmental and Mechanical
Dimensions
37 x 40 mm
Form Factor
PICO
Relative Humidity
10 to 90 %
MTBF
100,000+ Hours
Shock
15G half-sine 11 ms duration
Operation Temperature
Commercial: 0 to +60 C
Vibration
1 Grms random 5-500Hz hr/axis
Weight
8 grams
Certification and Compliance
FCC
FCC ID: 2AKZA-QCA9377
IC
IC: 22364-QCA9377
CE
EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024
TELEC (Japan)
TELEC: 201-180629
RCM (Australia/New Zealand)
RCM Compliant
Certification
Compliant with RoHS / REACH directives
Bluetooth Logo
QDID 150839 (Bluetooth 4.2)
Commercial Information
Brand
TechNexion
SKU Number
PICOIMX7D10R10E169377
Country of Origin
Taiwan
HTSN
8473.30.1180
ECCN
5A992.c Mass Market
CCATS
740.17(b)(1) Mass Market (No License Required)
REACH / RoHS
YES
Manufacturer: Electronic Components
MFG Part #: IMX7D10-R10-E16-9377
