Description

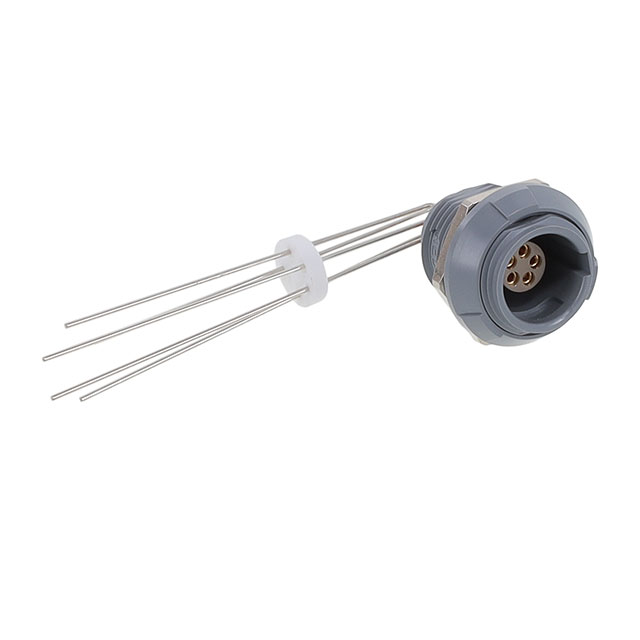

PKG.M0.5SL.VG Lemo Push-Pull, Detent Lock Plastic Connector Receptacle, Female Sockets 5 Position 7A IP50 – Dust Protected Panel Mount, Through Hole, Right Angle Unshielded Front and Rear Side Nut – Solder
Color: Gray
Shielding: Unshielded
Type: Circular Connector Assemblies
Primary Material: Plastic
Shell Material: Plastic
Shell Finish Material: Polyetherimide (PEI)
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets
Number of Positions: 5
Shell Size – Insert: 5
Orientation: G
Current Rating: 7A (Amps)
Termination: Solder
Mounting Feature: Front and Rear Side Nut
Mounting Type: Panel Mount, Through Hole, Right Angle
Fastening Type: Push-Pull, Detent Lock
Manufacturer Part Number: PKG.M0.5SL.VG
Manufacturer: Lemo
Datasheet: Datasheet
