Description

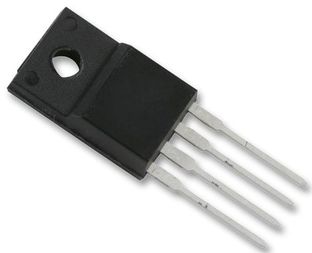

PQ30RV21J00H Sharp Microelectronics LDO Regulator Adjustable Positive Standard Regulator, 1.5V Min, 30V Max, PSFM4
Sharp Devices Europe (SDE) can supply you with devices and solutions that will reduce your parts count, board size and costs. Our broad portfolio of components is complemented by a commitment to provide you with the best possible service.By relying on all the expertise and experience that comes from over a century of innovative high-tech achievements, Sharp Devices Europe delivers parts and products that pack maximum performance into minimal dimensions. Our innovative components and component packaging and integration skills can help design engineers throughout Europe bring their own ambitious ideas to market.
Key Features
Low power-loss (Dropout voltage: MAX.0.5V)
Variable output voltage(setting range: 1.5 to 30V)
Built-in output ON/OFF control function
Technical Attributes
Description Value Find similar Parts
Operating Temperature -20 to 80C
Mounting Through Hole
Accuracy 2 %
Polarity Positive
Max Processing Temp 260
Output Type Adjustable
Supplier Package TO-220
Output Voltage 1.5 to 30 V
Minimum Input Voltage 4.5 V
Maximum Quiescent Current 7 mA
Maximum Input Voltage 35 V
Function LDO
Maximum Output Current 2 A
Maximum Dropout Voltage @ Current 0.5@2A V
Reference Voltage 1.275 V
Load Regulation 1 %
Line Regulation 2.5 %
Product Dimensions 10.2 x 4.5 x 7.5 mm
Lead Finish Tin/Copper
Number of Outputs 1
Pin Count 4
Input Voltage Range 35 to 4.5 V
Maximum Power Dissipation 18000 mW
Manufacturer Part Number: PQ30RV21J00H
Manufacturer: Sharp Microelectronics
