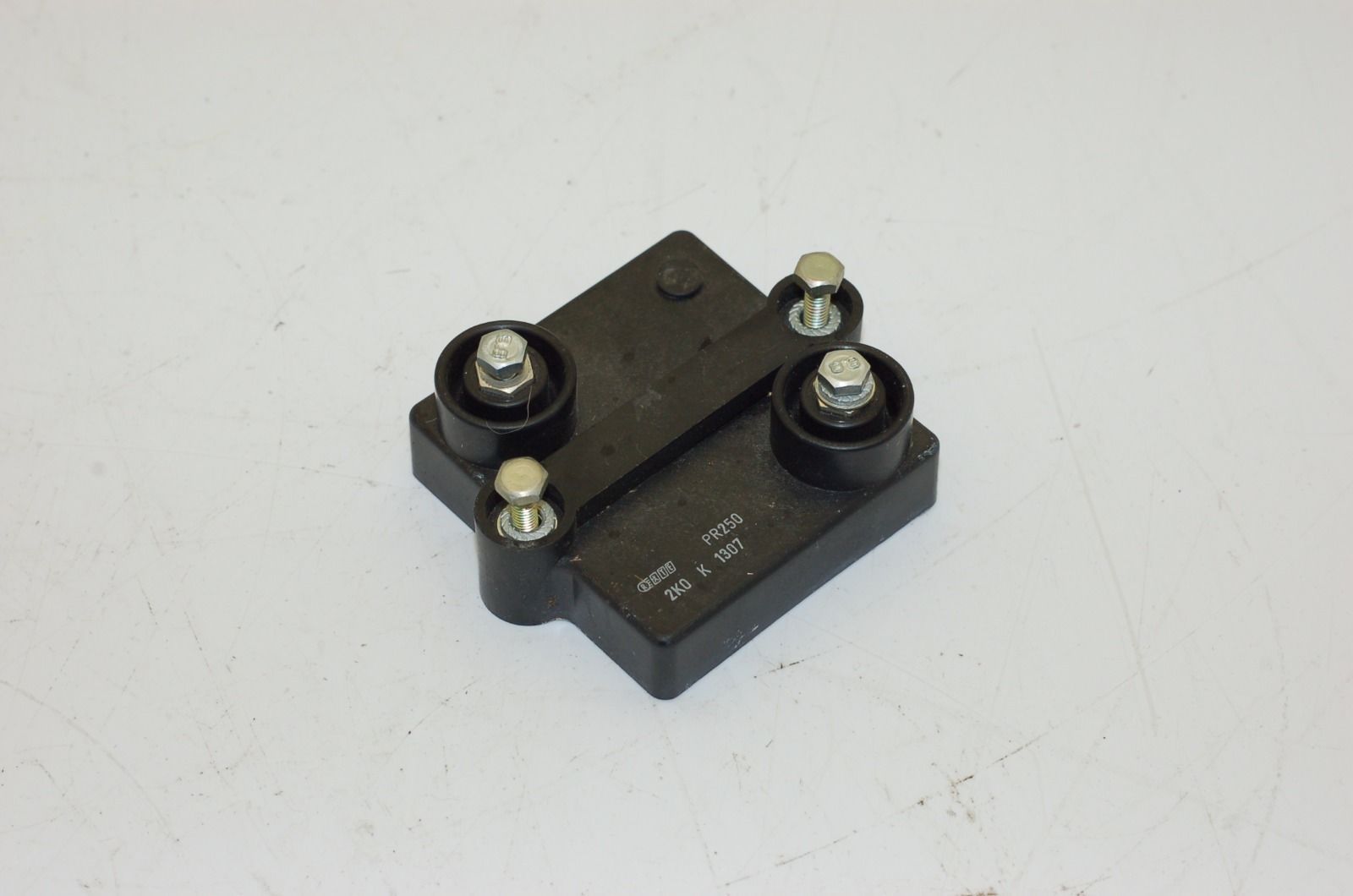

Description
Very good ratio Power / Volume
Easy mounting and wiring with significant cost advantages.
Non inductive performance for high frequency applications.
One models for power applications up to 500W.
Suited to ULV94-V0 application.
Technical Specifications
– Power rating
250W (heatsink at 100C)
– Resistance range
From 1R0 to 1MOhm, E12 series
– Tolerance
Standard 10%, up to 1% on request
– Temperature coefficient
100 ppm/C
– Max Work. Voltage
5000 Vac
– Work Temp. Range
From -55C to +155C
– Dielectric Strength
7000 Vac (12000 Vac x PR250T)
Manufacturer:ATE Electronics
Datasheet:ATE Catalogue.pdf
