Description

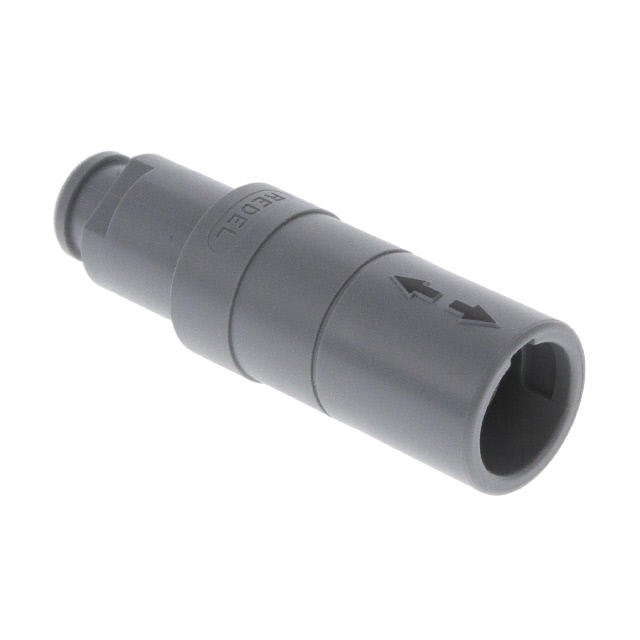

PRG.M0.6GL.LC52GZ Lemo Push-Pull, Detent Lock Plastic Connector Receptacle, Female Sockets 6 Position 6A 0.157″ ~ 0.205″ (4.00mm ~ 5.20mm) IP50 – Dust Protected Free Hanging (In-Line) Unshielded – Backshell Solder Cup
Color: Gray
Shielding: Unshielded
Type: Circular Connector Assemblies
Primary Material: Plastic
Shell Material: Plastic
Shell Finish Material: Polysulfone (PSU)
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets
Number of Positions: 6
Shell Size – Insert: 6
Orientation: G
Current Rating: 6A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull, Detent Lock
Manufacturer Part Number: PRG.M0.6GL.LC52GZ
Manufacturer: Lemo
Datasheet: Datasheet
