Description

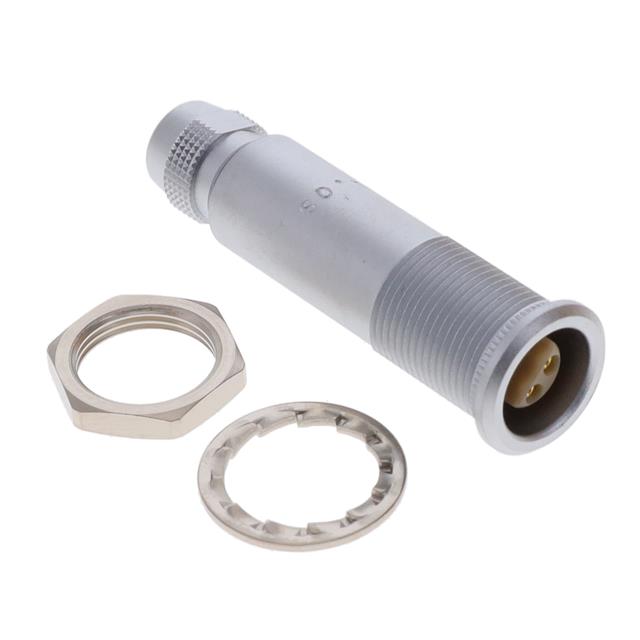

PSA.0S.303.CLLC32 Lemo Push-Pull Metal Connector Receptacle, Female Sockets and Male Pins 3 Position 7A 0.087″ ~ 0.126″ (2.20mm ~ 3.20mm) IP50 – Dust Protected Free Hanging (In-Line); Panel Mount Shielded Bulkhead Rear Side Nut UL94 V-0 Backshell Solder Cup
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets and Male Pins
Number of Positions: 3
Shell Size – Insert: 3
Orientation: Keyed
Current Rating: 7A (Amps)
Termination: Solder Cup
Mounting Feature: Bulkhead Rear Side Nut
Mounting Type: Free Hanging (In-Line); Panel Mount
Fastening Type: Push-Pull
Manufacturer Part Number: PSA.0S.303.CLLC32
Manufacturer: Lemo
Datasheet: Datasheet
