Description

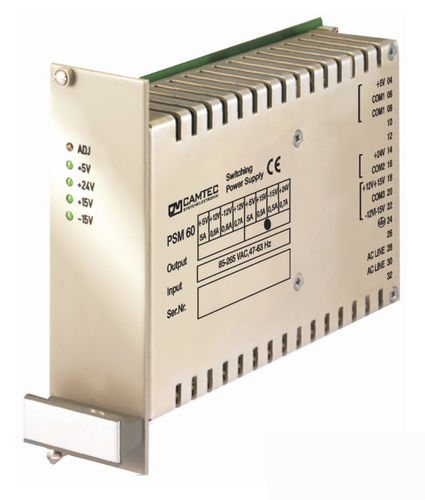

19 Inch 3U Norm Front End Slide-in-Unit
– Aluminium housing
– Up to 82% efficiency
– -20°C…+60°C full output power
– Free air convection
– Galvanic insulated
– Continuous short circuit protected
– Overload & low voltage protected
– Soft start & auto-recovery
– Hold up time >30ms
– Minimum load = 0A
– Switching frequency typ. 70KHz
– EMI/EMS EN61000-6-2,3, EN55022 class B
– cUL60950/16950 IEC(EN)60950-1
– H15M DIN61612 connector
– 24 hours burn in test
– High reliability, shock & vibration resistant
| Model | PSM00604 | |
| Power | 60W | |
| Nominal Input Voltage | 100… 240Vac | |
| Input Range AC | 85… 265Vac | |
| Input Range DC | 110… 375Vdc | |
| Input Frequency | 47… 63Hz | |
| Hold-Up Time | 30ms | |
| Inrush Current Protection | ||
| Autostart | Soft start | |
| Output Voltage U1 | + 5V | + 5V |
| Output Voltage U2 | + 12V | + 15V |
| Output Voltage U3 | – 12V | – 15V |
| Output Voltage U4 | + 24V | + 24V |
| Adjust Range U1 | 4,75… 5,24V | 4,75… 5,24V |
| Ripple & Noise mVss U1 | 10mV | 10mV |
| Ripple & Noise mVss U2 | 25mV | 25mV |
| Ripple & Noise mVss U3 | 25mV | 25mV |
| Ripple & Noise mVss U3 | 25mV | 25mV |
| Output Current I1 | 5A | 5A |
| Output Current I2 | 0,6A | 0,5A |
| Output Current I3 | 0,6A | 0,5A |
| Output Current I3 | 0,7A | 0,7A |
| Power Boost <=60°C/60s | 20% | 20% |
| Stability at Load Switch | ±0,5% | |
| Transient Time | ||
| Efficiency | 82% | |
| Basic Load | Idling-proof | |
| Short Circuit Protected | Continuous | |
| Ambient Operating Temperature | -20°C… +70°C | |
| Cooling | Natural convection | |
| Temperature Monitoring | No | |
| Dimensions (WxHxD) | 8HP 3HE 160mm | |
| IP-Range | IP20 | |
| Safety Norms | CSA UL CE according to IEC60950-1 | |
| Safety IEC | EN60950-1 EN50178 | |
| Safety class 1(A) | VDE0100 VDE0805 | |
| Input to Output Insulation | 3000Vac | |
| Climatic Class, Humidity | 3k3, 90% non condensing | |
| EMI | EN55022B EN61000-3-2A | |
| EMS | EN61000-6-2,3 | |
| MTBF IEC61709 | 400000h | |
| Power Good Relay | No | |
| Sense Operation | No | |
| Remote Shutdown | No | |
| Features | No | |
| Ordering options | Protective coating | |
Manufacturer:Camtec
Datasheet:Camtec_HPV04801_E0613F.pdf
