Description

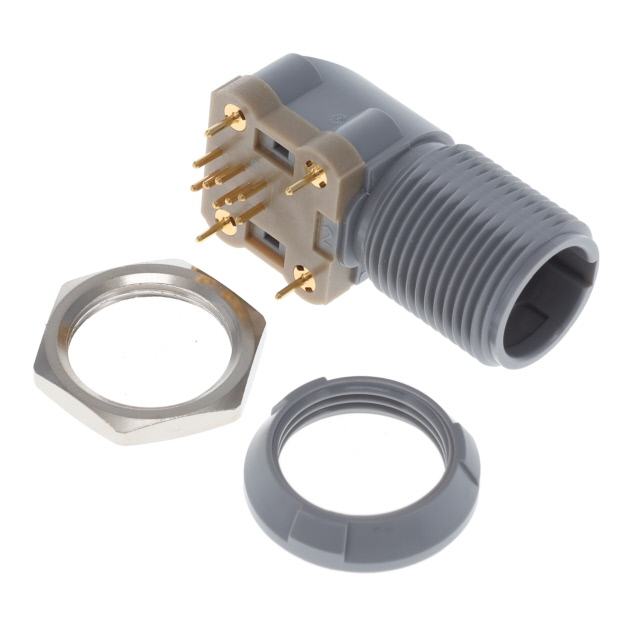

PXG.M0.8GG.NG Lemo Push-Pull, Detent Lock Plastic Connector Receptacle, Female Sockets 8 Position 5A IP50 – Dust Protected Panel Mount, Through Hole, Right Angle Unshielded Bulkhead Front or Rear Side Nut – Backshell Solder
Color: Gray
Shielding: Unshielded
Type: Circular Connector Assemblies
Primary Material: Plastic
Shell Material: Plastic
Shell Finish Material: Polysulfone (PSU)
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets
Number of Positions: 8
Shell Size – Insert: 8
Orientation: G
Current Rating: 5A (Amps)
Termination: Solder
Mounting Feature: Bulkhead Front or Rear Side Nut
Mounting Type: Panel Mount, Through Hole, Right Angle
Fastening Type: Push-Pull, Detent Lock
Manufacturer Part Number: PXG.M0.8GG.NG
Manufacturer: Lemo
Datasheet: Datasheet
