Description

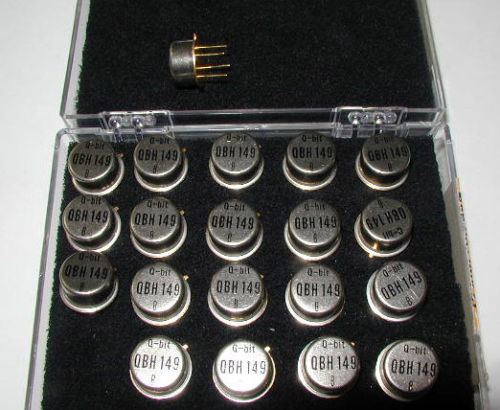

Q-BIT QBH-149 RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER 10 MHz – 150 MHz
| Specifications | |
| Amplifier Type | Power Amplifier |
| Applications | RF Microwave |
| Frequency Range | 10 to 150 MHz |
| Minimum Gain | 21.8 dB |
| Input VSWR | 1.5 1 |
| Output VSWR | 1.5 1 |
| Package Type | TO-8, 4 PIN |
| Operating Temperature | -55 to 85 C (-67 to 185 F) |
Component Name
Description
QB-101
Q-bit QB-101, 2.0-70.0 MHz, Po1dBC=31.00dBm, NF=4.5dB, Model features SP, NP, 1dBC, IP3
QB-102
Q-bit QB-102, 2-32 Mhz, Po1dBC=28dBm, NF=6.2dB, Model features SP, NF, 1dBC, IP3
QB-105
Q-bit QB-105, 2-32 Mhz, Po1dBC=37dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QB-188-2
Q-bit QB-188-2, 0.5-100.0 MHz, Po1dBC=27.00dBm, NF=5.5dB, Model features SP, NF, 1dBC, IP3
QB-188
Q-bit QB-188, 0.5-100.0 MHz, Po1dBC=21.00dBm, NF=3.0dB, Model features SP, NF, 1dBC, IP3
QB-189
Q-bit QB-189, 0.5-500.0 MHz, Po1dBC=25.00dBm, NF=7.5dB, Model features SP, NF, 1dBC, IP3
QB-192
Q-bit QB-192, 806.0-824.0 MHz, Po1dBC=27.00dBm, NF=4.0dB, Model features SP, NF, 1dBC, IP3
QB-193
Q-bit QB-193, 806.0-824.0 MHz, Po1dBC=27.00dBm, NF=2.5dB, Model features SP, NF, 1dBC, IP3
QB-196
Q-bit QB-196, 896.0-901.0 MHz, Po1dBC=27.00dBm, NF=3.0dB, Model features SP, NF, 1dBC, IP3
QB-197
Q-bit QB-197, 896.0-901.0 MHz, Po1dBC=27.00dBm, NF=2.5dB, Model features SP, NF, 1dBC, IP3
QB-201
Q-bit QB-201, 800-1000 Mhz, Po1dBC=30dBm, NF=6dB, Model features SP, NF, 1dBC, IP3
QB-210
Q-bit QB-210, 10.0-200.0 MHz, Po1dBC=23.00dBm, NF=10.0dB, Model features SP, NF, 1dBC, IP3
QB-255
Q-bit QB-255, 800-900 Mhz, Po1dBC=24dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QB-258
Q-bit QB-258, 10.0-250.0 MHz, Po1dBC=15.00dBm, NF=2.4dB, Model features SP, NF, 1dBC, IP3
QB-262
Q-bit QB-262, 10.0-500.0 MHz, Po1dBC=27.00dBm, NF=7.0dB, Model features SP, NF, 1dBC, IP3
QB-300
Q-bit QB-300, 1.0-300.0 MHz, Po1dBC=22.00dBm, NF=3.8dB, Model features SP, NF, 1dBC, IP3
QB-304
Q-bit QB-304, 800-900 Mhz, Po1dBC=24dBm, NF=3dB, Model features SP, NF, 1dBC, IP3
QB-442
Q-bit QB-442, 10-400 Mhz, Po1dBC=32dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QB-500-2
Q-bit QB-500-2, 2.0-500.0 MHz, Po1dBC=22.00dBm, NF=5.0dB, Model features SP, NF, 1dBC, IP3
QB-500
Q-bit QB-500, 2.0-500.0 MHz, Po1dBC=19.00dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QB-512-2
Q-bit QB-512-2, 2.0-500.0 MHz, Po1dBC=22.00dBm, NF=6.5dB, Model features SP, NF, 1dBC, IP3
QB-538
Q-bit QB-538, 2.0-500.0 MHz, Po1dBC=22.00dBm, NF=3.0dB, Model features SP, NF, 1dBC, IP3
QB-717
Q-bit QB-717, 5-200 Mhz, Po1dBC=22dBm, NF=3.6dB, Model features SP, NF, 1dBC, IP3
QB-7205
Q-bit QB-7205, 2.0-30.0 MHz, Po1dBC=27.00dBm, NF=5.0dB, Model features SP, NF, 1dBC, IP3
QB-7223
Q-bit QB-7223, 2-32 Mhz, Po1dBC=34.0dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QB-728B
Q-bit QB-728B, 300-900 Mhz, Po1dBC=30dBm, NF=10.5 dB, Model features SP, NF, 1dBC, IP3
QB-744
Q-bit QB-744, 2.0-200.0 MHz, Po1dBC=30.00dBm, NF=7.0dB, Model features SP, NF, 1dBC, IP3
QB-749
Q-bit QB-749, 50.0-1000.0 MHz, Po1dBC=7.00dBm, NF=3.7dB, Model features SP, NF, 1dBC, IP3
QB-760
Q-bit QB-760, 10.0-500.0 MHz, Po1dBC=8.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QB-761
Q-bit QB-761, 806.0-870.0 MHz, Po1dBC=18.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QB-808
Q-bit QB-808, 2-600 Mhz, Po1dBC=22dBm, NF=7.5dB, Model features SP, NF, 1dBC, IP3
QB-815
Q-bit QB-815, 10-1000 Mhz, Po1dBC=14dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QB-820
Q-bit QB-820, 50.0-850.0 MHz, Po1dBC=14.00dBm, NF=4.0dB, Model features SP, NF, 1dBC, IP3
QB-824
Q-bit QB-824, 50-850 Mhz, Po1dBC=8dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-101
Q-bit QBH-101, 25.0-450.0 MHz, Po1dBC=7.00dBm, NF=2.4dB, Model features SP, NF, 1dBC, IP3
QBH-102
Q-bit QBH-102, 5.0-500.0 MHz, Po1dBC=21.00dBm, NF=7.0dB, Model features SP, NF, 1dBC, IP3
QBH-103
Q-bit QBH-103, 10.0-90.0 MHz, Po1dBC=22.00dBm, NF=6.8dB, Model features SP, NF, 1dBC, IP3
QBH-104
Q-bit QBH-104, 5.0-500.0 MHz, Po1dBC=10.50dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QBH-105
Q-bit QBH-105, 5.0-300.0 MHz, Po1dBC=8.00dBm, NF=3.0dB, Model features SP, NF, 1dBC, IP3
QBH-106
Q-bit QBH-106, 10.0-500.0 MHz, Po1dBC=1.00dBm, NF=2.4dB, Model features SP, NF, 1dBC, IP3
QBH-107
Q-bit QBH-107, 5.0-550.0 MHz, Po1dBC=0.00dBm, NF=2.5dB, Model features SP, NF, 1dBC, IP3
QBH-108
Q-bit QBH-108, 5.0-300.0 MHz, Po1dBC=20.00dBm, NF=6.5dB, Model features SP, NF, 1dBC, IP3
QBH-109
Q-bit QBH-109, 10.0-500.0 MHz, Po1dBC=12.00dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QBH-110
Q-bit QBH-110, 10.0-500.0 MHz, Po1dBC=9.00dBm, NF=3.0dB, Model features SP, NF, 1dBC, IP3
QBH-114
Q-bit QBH-114, 10.0-400.0 MHz, Po1dBC=7.00dBm, NF=3.0dB, Model features SP, NF, 1dBC, IP3
QBH-115
Q-bit QBH-115, 10.0-500.0 MHz, Po1dBC=26.00dBm, NF=7.8dB, Model features SP, NF, 1dBC, IP3
QBH-116
Q-bit QBH-116, 5.0-400.0 MHz, Po1dBC=16.00dBm, NF=6.0dB, Model features SP, NF, 1dBC, IP3
QBH-117
Q-bit QBH-117, 5.0-100.0 MHz, Po1dBC=4.50dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBH-118
Q-bit QBH-118, 3.0-100.0 MHz, Po1dBC=13.00dBm, NF=1.9dB, Model features SP, NF, 1dBC, IP3
QBH-119
Q-bit QBH-119, 5.0-500.0 MHz, Po1dBC=12.00dBm, NF=3.0dB, Model features SP, NF, 1dBC, IP3
QBH-120
Q-bit QBH-120, 5.0-500.0 MHz, Po1dBC=2.00dBm, NF=2.0dB, Model features SP, NF, 1dBC, IP3
QBH-1216
Q-bit QBH-1216, 230.0-570.0 MHz, Po1dBC=20.00dBm, NF=8.0dB, Model features SP, NF, 1dBC, IP3
QBH-121
Q-bit QBH-121, 10.0-500.0 MHz, Po1dBC=12.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-1229
Q-bit QBH-1229, 100.0-500.0 MHz, Po1dBC=15.00dBm, NF=3.3dB, Model features SP, NF, 1dBC, IP3
QBH-122
Q-bit QBH-122, 10.0-500.0 MHz, Po1dBC=20.00dBm, NF=4.2dB, Model features SP, NF, 1dBC, IP3
QBH-1230
Q-bit QBH-1230, 318.0-358.0 MHz, Po1dBC=14.50dBm, NF=4.0dB, Model features SP, NF, 1dBC, IP3
QBH-1234
Q-bit QBH-1234, 100.0-500.0 MHz, Po1dBC=0.00dBm, NF=0.0dB, Model features SP, NF, 1dBC, IP3
QBH-123
Q-bit QBH-123, 5.0-800.0 MHz, Po1dBC=7.00dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QBH-124
Q-bit QBH-124, 10.0-90.0 MHz, Po1dBC=17.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-125
Q-bit QBH-125, 20.0-100.0 MHz, Po1dBC=23.00dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QBH-126
Q-bit QBH-126, 5.0-500.0 MHz, Po1dBC=16.00dBm, NF=3.8dB, Model features SP, NF, 1dBC, IP3
QBH-1274
Q-bit QBH-1274, 10-100 Mhz, Po1dBC=24dBm, NF=4dB, Model features SP, NF, 1dBC, IP3
QBH-127
Q-bit QBH-127, 10.0-500.0 MHz, Po1dBC=15.00dBm, NF=4.0dB, Model features SP, NF, 1dBC, IP3
QBH-128
Q-bit QBH-128, 20.0-1200.0 MHz, Po1dBC=13.00dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QBH-130
Q-bit QBH-130, 10.0-100.0 MHz, Po1dBC=15.50dBm, NF=2.8dB, Model features SP, NF, 1dBC, IP3
QBH-131
Q-bit QBH-131, 5.0-1300.0 MHz, Po1dBC=7.00dBm, NF=5.0dB, Model features SP, NF, 1dBC, IP3
QBH-132
Q-bit QBH-132, 15.0-700.0 MHz, Po1dBC=16.00dBm, NF=6.5dB, Model features SP, NF, 1dBC, IP3
QBH-133
Q-bit QBH-133, 10.0-500.0 MHz, Po1dBC=16.00dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QBH-134
Q-bit QBH-134, 5.0-500.0 MHz, Po1dBC=7.00dBm, NF=2.5dB, Model features SP, NF, 1dBC, IP3
QBH-135
Q-bit QBH-135, 3.0-350.0 MHz, Po1dBC=1.00dBm, NF=2.1dB, Model features SP, NF, 1dBC, IP3
QBH-136
Q-bit QBH-136, 10.0-200.0 MHz, Po1dBC=21.00dBm, NF=4.0dB, Model features SP, NF, 1dBC, IP3
QBH-137
Q-bit QBH-137, 10.0-200.0 MHz, Po1dBC=21.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-138
Q-bit QBH-138, 5.0-150.0 MHz, Po1dBC=21.00dBm, NF=3.2dB, Model features SP, NF, 1dBC, IP3
QBH-139
Q-bit QBH-139, 5.0-100.0 MHz, Po1dBC=12.00dBm, NF=2.6dB, Model features SP, NF, 1dBC, IP3
QBH-141
Q-bit QBH-141, 10.0-300.0 MHz, Po1dBC=7.50dBm, NF=2.9dB, Model features SP, NF, 1dBC, IP3
QBH-142
Q-bit QBH-142, 10.0-140.0 MHz, Po1dBC=7.00dBm, NF=2.3dB, Model features SP, NF, 1dBC, IP3
QBH-145
Q-bit QBH-145, 10.0-150.0 MHz, Po1dBC=19.00dBm, NF=5.8dB, Model features SP, NF, 1dBC, IP3
QBH-146
Q-bit QBH-146, 20.0-1100.0 MHz, Po1dBC=6.00dBm, NF=2.9dB, Model features SP, NF, 1dBC, IP3
QBH-147
Q-bit QBH-147, 20.0-1100.0 MHz, Po1dBC=10.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-149
Q-bit QBH-149, 10.0-150.0 MHz, Po1dBC=17.50dBm, NF=2.8dB, Model features SP, NF, 1dBC, IP3
QBH-150
Q-bit QBH-150, 10.0-300.0 MHz, Po1dBC=18.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-152
Q-bit QBH-152, 10.0-300.0 MHz, Po1dBC=18.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-153
Q-bit QBH-153, 10.0-700.0 MHz, Po1dBC=25.00dBm, NF=9.5dB, Model features SP, NF, 1dBC, IP3
QBH-154
Q-bit QBH-154, 200.0-1200.0 MHz, Po1dBC=8.00dBm, NF=2.6dB, Model features SP, NF, 1dBC, IP3
QBH-155
Q-bit QBH-155, 5.0-300.0 MHz, Po1dBC=22.00dBm, NF=5.8dB, Model features SP, NF, 1dBC, IP3
QBH-157
Q-bit QBH-157, 5.0-500.0 MHz, Po1dBC=22.00dBm, NF=7.2dB, Model features SP, NF, 1dBC, IP3
QBH-160
Q-bit QBH-160, 20.0-1200.0 MHz, Po1dBC=17.00dBm, NF=8.0dB, Model features SP, NF, 1dBC, IP3
QBH-164
Q-bit QBH-164, 20.0-1300.0 MHz, Po1dBC=14.50dBm, NF=8.0dB, Model features SP, NF, 1dBC, IP3
QBH-167
Q-bit QBH-167, 10.0-500.0 MHz, Po1dBC=26.00dBm, NF=7.0dB, Model features SP, NF, 1dBC, IP3
QBH-169
Q-bit QBH-169, 10.0-1000.0 MHz, Po1dBC=20.00dBm, NF=6.5dB, Model features SP, NF, 1dBC, IP3
QBH-171
Q-bit QBH-171, 10.0-150.0 MHz, Po1dBC=27.00dBm, NF=6.5dB, Model features SP, NF, 1dBC, IP3
QBH-172
Q-bit QBH-172, 1.0-100.0 MHz, Po1dBC=16.00dBm, NF=3.3dB, Model features SP, NF, 1dBC, IP3
QBH-174
Q-bit QBH-174, 20-1200 Mhz, Po1dBC=5dBm, NF=5.5dB, Model features SP, NF, 1dBC, IP3
QBH-175
Q-bit QBH-175, 20.0-500.0 MHz, Po1dBC=15.00dBm, NF=3.3dB, Model features SP, NF, 1dBC, IP3
QBH-176
Q-bit QBH-176, 5.0-1100.0 MHz, Po1dBC=18.00dBm, NF=7.0dB, Model features SP, NF, 1dBC, IP3
QBH-178
Q-bit QBH-178, 20.0-700.0 MHz, Po1dBC=5.50dBm, NF=2.8dB, Model features SP, NF, 1dBC, IP3
QBH-179
Q-bit QBH-179, 5.0-200.0 MHz, Po1dBC=9.00dBm, NF=3.0dB, Model features SP, NF, 1dBC, IP3
QBH-180
Q-bit QBH-180, 5.0-150.0 MHz, Po1dBC=18.00dBm, NF=3.8dB, Model features SP, NF, 1dBC, IP3
QBH-181
Q-bit QBH-181, 10.0-200.0 MHz, Po1dBC=16.00dBm, NF=2.8dB, Model features SP, NF, 1dBC, IP3
QBH-182
Q-bit QBH-182, 10.0-500.0 MHz, Po1dBC=25.00dBm, NF=8.0dB, Model features SP, NF, 1dBC, IP3
QBH-183
Q-bit QBH-183, 5.0-1100.0 MHz, Po1dBC=16.00dBm, NF=5.8dB, Model features SP, NF, 1dBC, IP3
QBH-184
Q-bit QBH-184, 5.0-1000.0 MHz, Po1dBC=10.00dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QBH-186
Q-bit QBH-186, 10.0-600.0 MHz, Po1dBC=21.00dBm, NF=7.5dB, Model features SP, NF, 1dBC, IP3
QBH-187
Q-bit QBH-187, 10.0-500.0 MHz, Po1dBC=11.00dBm, NF=4.0dB, Model features SP, NF, 1dBC, IP3
QBH-189
Q-bit QBH-189, 5.0-2000.0 MHz, Po1dBC=16.00dBm, NF=7.0dB, Model features SP, NF, 1dBC, IP3
QBH-191
Q-bit QBH-191, 5.0-500.0 MHz, Po1dBC=16.50dBm, NF=5.5dB, Model features SP, NF, 1dBC, IP3
QBH-196
Q-bit QBH-196, 20.0-700.0 MHz, Po1dBC=15.00dBm, NF=4.0dB, Model features SP, NF, 1dBC, IP3
QBH-198
Q-bit QBH-198, 5.0-450.0 MHz, Po1dBC=12.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-199
Q-bit QBH-199, 5.0-200.0 MHz, Po1dBC=7.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-228
Q-bit QBH-228, 5.0-100.0 MHz, Po1dBC=27.00dBm, NF=4.7dB, Model features SP, NF, 1dBC, IP3
QBH-229
Q-bit QBH-229, 5.0-200.0 MHz, Po1dBC=27.00dBm, NF=4.0dB, Model features SP, NF, 1dBC, IP3
QBH-302
Q-bit QBH-302, 10.0-450.0 MHz, Po1dBC=17.00dBm, NF=4.3dB, Model features SP, NF, 1dBC, IP3
QBH-304
Q-bit QBH-304, 5.0-200.0 MHz, Po1dBC=8.50dBm, NF=3.0dB, Model features SP, NF, 1dBC, IP3
QBH-4002
Q-bit QBH-4002, 200.0-3000.0 MHz, Po1dBC=12.00dBm, NF=4.0dB, Model features SP, NF, 1dBC, IP3
QBH-4005
Q-bit QBH-4005, 1200-1600 Mhz, Po1dBC=5dBm, NF=3dB, Model features SP, NF, 1dBC, IP3
QBH-4007
Q-bit QBH-4007, 50.0-2000.0 MHz, Po1dBC=28.00dBm, NF=6.0dB, Model features SP, NF, 1dBC, IP3
QBH-4008
Q-bit QBH-4008, 1100-2500 Mhz, Po1dBC=28dBm, NF=6dB, Model features SP, NF, 1dBC, IP3
QBH-804
Q-bit QBH-804, 10.0-100.0 MHz, Po1dBC=24.00dBm, NF=4.0dB, Model features SP, NF, 1dBC, IP3
QBH-810
Q-bit QBH-810, 10.0-200.0 MHz, Po1dBC=22.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-811
Q-bit QBH-811, 200.0-1200.0 MHz, Po1dBC=8.00dBm, NF=2.6dB, Model features SP, NF, 1dBC, IP3
QBH-812
Q-bit QBH-812, 50.0-500.0 MHz, Po1dBC=15.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-813
Q-bit QBH-813, 10.0-600.0 MHz, Po1dBC=15.00dBm, NF=3.3dB, Model features SP, NF, 1dBC, IP3
QBH-814
Q-bit QBH-814, 10.0-1000.0 MHz, Po1dBC=24.50dBm, NF=9.0dB, Model features SP, NF, 1dBC, IP3
QBH-816
Q-bit QBH-816, 10.0-2000.0 MHz, Po1dBC=21.00dBm, NF=8.0dB, Model features SP, NF, 1dBC, IP3
QBH-817
Q-bit QBH-817, 10.0-1500.0 MHz, Po1dBC=20.00dBm, NF=6.0dB, Model features SP, NF, 1dBC, IP3
QBH-818
Q-bit QBH-818, 10.0-400.0 MHz, Po1dBC=14.50dBm, NF=2.9dB, Model features SP, NF, 1dBC, IP3
QBH-819
Q-bit QBH-819, 2.0-1000.0 MHz, Po1dBC=18.00dBm, NF=6.0dB, Model features SP, NF, 1dBC, IP3
QBH-821
Q-bit QBH-821, 10.0-1000.0 MHz, Po1dBC=9.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-822
Q-bit QBH-822, 10.0-2000.0 MHz, Po1dBC=11.00dBm, NF=5.0dB, Model features SP, NF, 1dBC, IP3
QBH-823
Q-bit QBH-823, 10.0-2000.0 MHz, Po1dBC=8.00dBm, NF=5.0dB, Model features SP, NF, 1dBC, IP3
QBH-824
Q-bit QBH-824, 10.0-2000.0 MHz, Po1dBC=12.00dBm, NF=6.5dB, Model features SP, NF, 1dBC, IP3
QBH-825
Q-bit QBH-825, 10.0-1200.0 MHz, Po1dBC=18.50dBm, NF=6.5dB, Model features SP, NF, 1dBC, IP3
QBH-826
Q-bit QBH-826, 10.0-450.0 MHz, Po1dBC=20.00dBm, NF=3.5dB, Model features SP, NF, 1dBC, IP3
QBH-827
Q-bit QBH-827, 10.0-1000.0 MHz, Po1dBC=27.00dBm, NF=8.0dB, Model features SP, NF, 1dBC, IP3
QBH-828
Q-bit QBH-828, 10.0-1000.0 MHz, Po1dBC=19.50dBm, NF=4.8dB, Model features SP, NF, 1dBC, IP3
QBH-830
Q-bit QBH-830, 10.0-1300.0 MHz, Po1dBC=2.00dBm, NF=4.0dB, Model features SP, NF, 1dBC, IP3
QBH-831
Q-bit QBH-831, 10-1300 Mhz, Po1dBC=2dBm, NF=4dB, Model features SP, NF, 1dBC, IP3
QBH-834
Q-bit QBH-834, 10.0-100.0 MHz, Po1dBC=27.00dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QBH-835
Q-bit QBH-835, 10.0-500.0 MHz, Po1dBC=24.50dBm, NF=6.0dB, Model features SP, NF, 1dBC, IP3
QBH-838
Q-bit QBH-838, 50.0-500.0 MHz, Po1dBC=1.00dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBH-840
Q-bit QBH-840, 10.0-400.0 MHz, Po1dBC=20.00dBm, NF=5.8dB, Model features SP, NF, 1dBC, IP3
QBH-841
Q-bit QBH-841, 5.0-100.0 MHz, Po1dBC=4.50dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBH-842
Q-bit QBH-842, 10.0-250.0 MHz, Po1dBC=27.00dBm, NF=6.5dB, Model features SP, NF, 1dBC, IP3
QBH-843
Q-bit QBH-843, 5-100 Mhz, Po1dBC=30dBm, NF=6dB, Model features SP, NF, 1dBC, IP3
QBH-844
Q-bit QBH-844, 10.0-400.0 MHz, Po1dBC=19.00dBm, NF=3.7dB, Model features SP, NF, 1dBC, IP3
QBH-845
Q-bit QBH-845, 3.0-100.0 MHz, Po1dBC=16.00dBm, NF=1.9dB, Model features SP, NF, 1dBC, IP3
QBH-847
Q-bit QBH-847, 30.0-1000.0 MHz, Po1dBC=10.00dBm, NF=5.0dB, Model features SP, NF, 1dBC, IP3
QBH-849
Q-bit QBH-849, 5.0-600.0 MHz, Po1dBC=12.00dBm, NF=3.0dB, Model features SP, NF, 1dBC, IP3
QBH-853
Q-bit QBH-853, 100-300 Mhz, Po1dBC=21dBm, NF=1.8dB, Model features SP, NF, 1dBC, IP3
QBH-854
Q-bit QBH-854, 10-100 Mhz, Po1dBC=24dBm, NF=4dB, Model features SP, NF, 1dBC, IP3
QBH-857
Q-bit QBH-857, 10-200 Mhz, Po1dBC=11dBm, NF=2dB, Model features SP, NF, 1dBC, IP3
QBH-866
Q-bit QBH-866, 10-1500 Mhz, Po1dBC=13.5dBm, NF=6dB, Model features SP, NF, 1dBC, IP3
QBH-868
Q-bit QBH-868, 10.0-1500.0 MHz, Po1dBC=14.00dBm, NF=7.0dB, Model features SP, NF, 1dBC, IP3
QBH-869
Q-bit QBH-869, 10.0-1000.0 MHz, Po1dBC=20.00dBm, NF=6.5dB, Model features SP, NF, 1dBC, IP3
QBH-870
Q-bit QBH-870, 10.0-200.0 MHz, Po1dBC=20.00dBm, NF=2.9dB, Model features SP, NF, 1dBC, IP3
QBH-887
Q-bit QBH-887, 10.0-100.0 MHz, Po1dBC=10.00dBm, NF=2.5dB, Model features SP, NF, 1dBC, IP3
QBH-9234
Q-bit QBH-9234, 5-100 Mhz, Po1dBC=4.5dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-101
Q-bit QBS-101, 2-70 Mhz, Po1dBC=4.5dBm, NF=4.5dB, Model features SP, NF, 1dBC, IP3
QBS-104
Q-bit QBS-104, 896.0-925.0 MHz, Po1dBC=26.00dBm, NF=2.0dB, Model features SP, NF, 1dBC, IP3
QBS-108
Q-bit QBS-108, 824.0-849.0 MHz, Po1dBC=25.00dBm, NF=5.0dB, Model features SP, NF, 1dBC, IP3
QBS-110
Q-bit QBS-110, 806.0-849.0 MHz, Po1dBC=26.00dBm, NF=2.0dB, Model features SP, NF, 1dBC, IP3
QBS-125
Q-bit QBS-125, 896-960 Mhz, Po1dBC=28dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-126-1
Q-bit QBS-126-1, 925-960 Mhz, Po1dBC=28dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-126-2
Q-bit QBS-126-2, 925.0-960.0 MHz, Po1dBC=28.00dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-127-2
Q-bit QBS-127-2, 940.0-956.0 MHz, Po1dBC=22.00dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-133
Q-bit QBS-133, 825.0-845.0 MHz, Po1dBC=19.00dBm, NF=1.3dB, Model features SP, NF, 1dBC, IP3
QBS-135
Q-bit QBS-135, 824-849 Mhz, Po1dBC=24dBm, NF=1.3dB, Model features SP, NF, 1dBC, IP3
QBS-136
Q-bit QBS-136, 824-849 Mhz, Po1dBC=25dBm, NF=5.5dB, Model features SP, NF, 1dBC, IP3
QBS-137
Q-bit QBS-137, 824-849 Mhz, Po1dBC=15dBm, NF=1.3dB, Model features SP, NF, 1dBC, IP3
QBS-141-1
Q-bit QBS-141-1, 824-849 Mhz, Po1dBC=28dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-141-2
Q-bit QBS-141-2, 824-849 Mhz, Po1dBC=28dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-142-1
Q-bit QBS-142-1, 824-849 Mhz, Po1dBC=22dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-142-2
Q-bit QBS-142-2, 824-849 Mhz, Po1dBC=22dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-146-1
Q-bit QBS-146-1, 870-915 Mhz, Po1dBC=28dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-146-2
Q-bit QBS-146-2, 870-915 Mhz, Po1dBC=28dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-147-1
Q-bit QBS-147-1, 870-915 Mhz, Po1dBC=22dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-147-2
Q-bit QBS-147-2, 870-915 Mhz, Po1dBC=22dBm, NF=1.5dB, Model features SP, NF, 1dBC, IP3
QBS-158
Q-bit QBS-158, 800-960 Mhz, Po1dBC=33dBm, NF=2.5dB, Model features SP, NF, 1dBC, IP3
Manufacturer:Electronic Components
Datasheet:QBH-149.pdf
