RB150 1K2 J ATE Electronics Resistor 1.2KOHM 5% 150W AXIAL

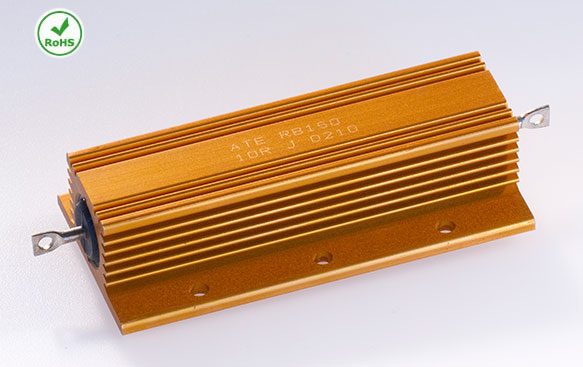

RB150 1K2 J ATE Fixed power wirewound resistors aluminium housed 150W 1.2KOHM 5%

SKU: RB150-1K2-J Category: Tags: , Brand:

Description

SPECIFICATIONS

Ohmic values
Series E24. For out of range or not standard ohmic values, consult UPE Technical Department.

Tolerance
Standard 5%. Available on request up to 1%.

Temperature coefficient
30 ppm R > 20 Ohm
50 ppm 1 Ohm < R < 20 Ohm
100 ppm 0.1 Ohm < R < 1 Ohm Dielectric strength
3500 Vac for RB150

Insulation resistance
10000 MOhm minimum
1000 MOhm after moisture test

Overload
5s at 5 times rated power

Non inductive
Models of equivalent physical and electrical specifications are also available with non inductive Ayrton-Perry winding

MECHANICAL SPECIFICATIONS
Terminal strength
10 lb. pull test; 3 Nm x RB100 and 4 Nm x RB250 max torque

Solderability
Satisfactory when tested in accordance with method 208 of MIL-STD-202. The use of high temperature solder is recommended when resistors work near the maximum specified ratings
MATERIALS

Core
Ceramic steatite or alumina centerless ground

Resistive Element
Copper-nickel alloy or nickel-chrome alloy with specific temperature coefficient

End caps
Stainless steel

Encapsulant
High temperature thermosetting compound

Housing
Aluminium with hard anodic finish

Standard terminals
Copperweld

ATE RB resistors have and operative temperature range from -55C to +250C
Derating is required for reduced chassis area and for high ambient temperature
Manufacturer Part Number: RB150-1K2-J
Manufacturer: ATE Electronics
