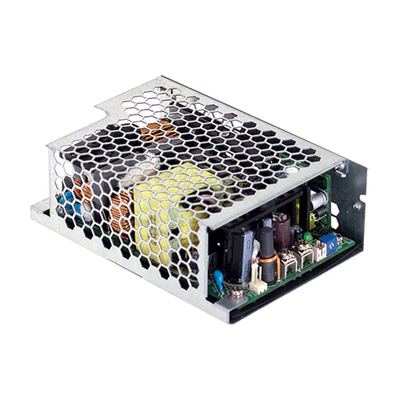

REL-70-4007-CHCO Manufacturer: Integrated Power Designs Quad Output Power Supply, Open Frame, 2.5″x4.5″, ITE & Medical
Specifications:
FEATURES
RoHS?Compliant
Universal 85-264 VAC Input
High Efficiency
Advanced SMT Design
Compact 2.5 x 4.5 x 1.2 Size
Fits 1U Applications
EN 60950-1 ITE Certification
EN 60601-1 Medical Certification
Class B Emissions per EN 55011/22
Harmonic Current per EN 61000-3-2
EMC to EN 61000-6-2 & EN 60601-1-2
Optional Chassis & Cover
One to Four Outputs
Output Specifications:
Output #1
Voltage #1: 5 Volts DC
Max Current #1: 6 Amps
Output #2
Voltage #2: 24 Volts DC
Max Current #2: 2 Amps
Output #3
Voltage #3: 15 Volts DC
Max Current #3: 2 Amps
Output #4
Voltage #4: -15 Volts DC
Max Current #4: 2 Amps
Total Power: 70 Watts
Input Specifications:
Input Voltage: 85~264VAC Universal Input
MODEL LISTING |
||||
model |
output 1 |
output 2 |
output 3 |
output 4 |
| REL-70-4001 REL-70-4002 REL-70-4003 REL-70-4004 REL-70-4005 REL-70-4006 REL-70-4007 REL-70-4009 REL-70-3001 REL-70-3002 REL-70-3003 REL-70-3004 REL-70-2001 REL-70-2002 REL-70-2003 REL-70-2004 REL-70-2005 REL-70-2006 REL-70-1001 REL-70-1002 REL-70-1003 REL-70-1004 REL-70-1005 REL-70-1006 REL-70-1007 REL-70-1008 |
+3.3V/6A +5V/6A +5V/6A +5V/6A +5V/6A +5V/6A +5V/6A 6.7V/5A +5V/6A +5V/6A +5.1V/6A +3.3V/6A +3.3V/6A +5V/6A +5V/6A +12V/3A +15V/3A +5.5V/6A 2.5V/14A 3.3V/14A 5V/14A 12V/5.8A 15V/4.7A 24V/2.9A 28V/2.5A 48V/1.5A |
+5V/5A +3.3V/5A +3.3V/5A -5V/5A -5V/5A +24V/2A +24V/2A 5V/4A +12V/2A +15V/2A +7.5V/2A +7V/5A +5V/5A +12V/4A +24V/2A -12V/3A -15V/2A -5.5V/5A |
+12V/2A +12V/2A +15V/2A +12V/2A +15V/2A +12V/2A +15V/2A +15V/2A – – – +12V/2A |
-12V/2A -12V/2A -15V/2A -12V/2A -15V/2A -12V/2A -15V/2A -15V/2A -12V/2A -15V/2A -7.5V/2A |
Manufacturer:Electronic Components
Datasheet:REL-70 Specs.pdf
