Description

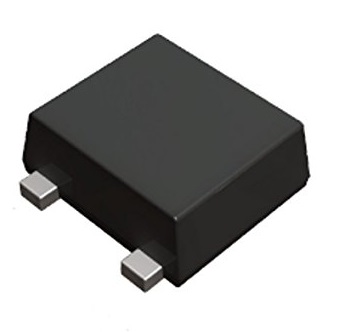

RRF015P03TL Rohm Transistor Power MOSFET P-Channel 30 V -1.5 A 160 mOhm Surface Mount TUMT-3 RoHS
Specifications
Manufacturer:ROHM Semiconductor
Product Category:MOSFET
Technology:Si
Mounting Style:SMD/SMT
Package / Case:SOT-323-3
Transistor Polarity:P-Channel
Number of Channels:1 Channel
Vds – Drain-Source Breakdown Voltage:30 V
Id – Continuous Drain Current:1.5 A
Rds On – Drain-Source Resistance:115 mOhms
Vgs – Gate-Source Voltage:- 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage:2.5 V
Qg – Gate Charge:6.4 nC
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 150 C
Pd – Power Dissipation:800 mW
Channel Mode:Enhancement
Packaging:Cut Tape
Packaging:Reel
Configuration:Single
Series:RRF015P03
Transistor Type:1 P-Channel
Brand:ROHM Semiconductor
Forward Transconductance – Min:1.2 S
Fall Time:13 ns
Product Type:MOSFET
Rise Time:8 ns
Factory Pack Quantity:3000
Subcategory:MOSFETs
Typical Turn-Off Delay Time:40 ns
Typical Turn-On Delay Time:12 ns
Part # Aliases:RRF015P03
Unit Weight:0.001058 oz
Manufacturer: Rohm Semiconductor
MFG Part #: RRF015P03TL
