Description

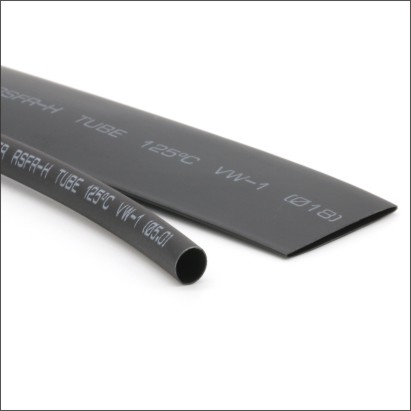

RSFR-H, Woer 0.6MM, HEAT-SHRINKABLE TUBE BLACK. VW-1-Heasy to use heat shrink tubing made from flexible, halogen-free flame retardant Polyolefin. The shrink ratio of this heat shrink tubing is 2:1 which means it shrinks to half of its original diameter. This heat shrink is halogen-free or zero halogen which means, when it overheats or burns, it produces less smoke and fewer toxic gasses making it ideal for use in environments where safety is an important consideration, especially if there is a risk of fire or electrical circuits overheating.
RSFR-H
Thin wall, Flame retardant, flexible heat shrink tubing
Universal heat shrink tubing with excellent physical and mechanical properties
Features:
Flexible
Flame retardant
Operating temperature: -55? to 125?
Fully shrink temperature: ≥125?
RoHS compliant
Technical Data
Property Test Method Typical Performance
Tensile strength ? MPa? ASTM D 2671 ≥10.4
Ultimate elongation ? %? ASTM D 2671 ≥ 2 00
Tensile strength after heat aged ? MPa ? 1 58 ?×168h ≥7.3
Ultimate elongation after heat aged ? % ? 1 58 ?×168h ≥100
Longitudinal chang(%) ASTM D 2671 -5% ? +5%
Flammability ASTM D 2671 C method VW-1
Voltage withstand UL 224, 2500V, 60s No breakdown
Dielectric strength ?kV/mm ? ASTM D 149 ≥ 15
Volume resistivity ?Ω·cm ? ASTM D 876 ≥1014
| SIZE | AS SUPPLIED | AFTER RECOVERY | STANDARD PACKAGE | ||
|---|---|---|---|---|---|
| Inch | mm | INTERNAL DIAMETER mm | INTERNAL DIAMETER mm | WALL THICKNESS mm | SPOOL LENGTH M/spool |
| 3/64 | 0.8 | 1.1±0.2 | ≤0.50 | 0.33±0.10 | 200 |
| 1/16 | 1.0 | 1.5±0.2 | ≤0.65 | 0.36±0.10 | 200 |
| 1.5 | 2.0±0.2 | ≤0.85 | 0.36±0.10 | 200 | |
| 3/32 | 2.0 | 2.5±0.2 | ≤1.00 | 0.45±0.10 | 200 |
| 2.5 | 3.0±0.2 | ≤1.30 | 0.45±0.10 | 200 | |
| 1/8 | 3.0 | 3.5±0.2 | ≤1.50 | 0.45±0.10 | 200 |
| 3.5 | 4.0±0.2 | ≤1.80 | 0.45±0.10 | 200 | |
| 4.0 | 4.5±0.2 | ≤2.00 | 0.45±0.10 | 200 | |
| 3/16 | 4.5 | 5.0±0.2 | ≤2.30 | 0.56±0.10 | 100 |
| 5.0 | 5.5±0.2 | ≤2.50 | 0.56±0.10 | 100 | |
| 5.5 | 6.00±0.20 | ≤2.80 | 0.56±0.10 | 100 | |
| 1/4 | 6.0 | 6.5±0.2 | ≤3.00 | 0.56±0.10 | 100 |
| 5/16 | 7.0 | 7.5±0.3 | ≤3.50 | 0.56±0.10 | 100 |
| 8.0 | 8.5±0.3 | ≤4.00 | 0.56±0.10 | 100 | |
| 3/8 | 9.0 | 9.5±0.3 | ≤4.50 | 0.56±0.10 | 100 |
| 10.0 | 10.5±0.3 | ≤5.00 | 0.56±0.10 | 100 | |
| 11.0 | 11.5±0.3 | ≤5.50 | 0.56±0.10 | 100 | |
| 1/2 | 12.0 | 12.5±0.3 | ≤6.00 | 0.56±0.10 | 100 |
| 13.0 | 13.5±0.3 | ≤6.50 | 0.56±0.10 | 100 | |
| 14.0 | 14.5±0.3 | ≤7.00 | 0.70±0.10 | 100 | |
| 5/8 | 15.0 | 15.5±0.4 | ≤7.50 | 0.70±0.10 | 100 |
| 16.0 | 16.5±0.4 | ≤8.00 | 0.70±0.10 | 100 | |
| 17.0 | 17.5±0.4 | ≤8.50 | 0.70±0.10 | 100 | |
| 3/4 | 18.0 | 19.0±0.5 | ≤9.00 | 0.70±0.10 | 100 |
| 20.0 | 21.0±0.5 | ≤10.0 | 0.83±0.15 | 100 | |
| 22.0 | 23.0±0.5 | ≤11.0 | 0.83±0.15 | 100 | |
| 1 | 25.0 | 26.0±0.5 | ≤12.5 | 0.90±0.15 | 50 |
| 28.0 | 29.0±0.5 | ≤14.0 | 0.90±0.15 | 50 | |
| 1-1/4 | 30.0 | 31.5±1.0 | ≤15.0 | 1.00±0.15 | 50 |
| 35.0 | 36.5±1.0 | ≤17.5 | 1.00±0.15 | 50 | |
| 1-1/2 | 40.0 | 41.5±1.0 | ≤20.0 | 1.00±0.15 | 50 |
| 45.0 | 46.5±1.0 | ≤22.5 | 1.00±0.15 | 25 | |
| 2 | 50.0 | ≥50 | ≤25.0 | 1.10±0.15 | 25 |
| 60.0 | ≥60 | ≤31.0 | 1.20±0.15 | 25 | |
| 70.0 | ≥70 | ≤36.0 | 1.30±0.20 | 25 | |
| 3 | 80.0 | ≥80 | ≤41.0 | 1.30±0.20 | 25 |
| 90.0 | ≥90 | ≤46.0 | 1.30±0.20 | 25 | |
| 4 | 100.0 | ≥100 | ≤51.0 | 1.30±0.20 | 25 |
| 5 | 120.0 | ≥120 | ≤61.0 | 1.30±0.20 | 25 |
| 6 | 150.0 | ≥150 | ≤76.0 | 1.30±0.20 | 25 |
| 7 | 180.0 | ≥180 | ≤91.0 | 1.30±0.30 | 25 |
Manufacturer Part Number: RSFR-H-0.6MM-BLACK
Manufacturer: Electronic Components
