Description

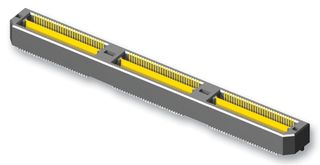

SAMTEC# QSH-030-01-L-D-A-K-TR, Conn Micro High Speed Socket Strip SKT 60 POS 0.5mm Solder ST SMD T/R
Manufacturer Samtec Inc.
Connector Type Receptacle, Center Strip Contacts
Number of Positions 60
Pitch 0.020″ (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 10µin (0.25µm)
Mated Stacking Heights 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board 0.128″ (3.25mm)
Manufacturer:Samtec
Datasheet:Samtec/qsh.pdf
