Description

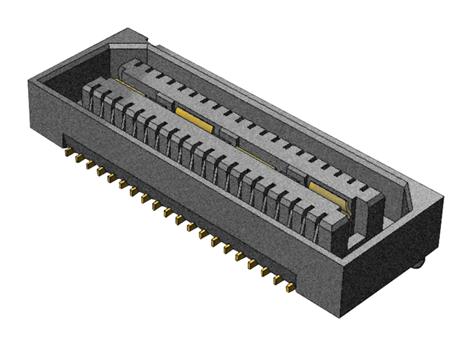

Samtec QTH-030-01-L-D-A-K 60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Connector, Stacking, Header, 60 Posistion, 2ROW, 0.5MM, Series:QTH, Pitch Spacing:0.5mm, No. of Contacts:60, Gender:Header, Contact Plating:Gold, Row Pitch:3.9mm, No. of Rows:2, Contact Termination Type:Surface Mount
Specifications
Manufacturer: Samtec
Product Category: Board to Board & Mezzanine Connectors
RoHS
Product: Headers
Number of Positions: 60 Position
Pitch: 0.5 mm
Number of Rows: 2 Row
Termination Style: SMD/SMT
Mounting Angle: Straight
Current Rating: 2 A
Voltage Rating: 175 VAC
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 55 C
Series: QTH
Packaging: Tray
Application: Power, Signal
Contact Plating: Gold
Housing Material: Liquid Crystal Polymer (LCP)
Brand: Samtec
Contact Material: Phosphor Bronze
Flammability Rating: UL 94 V-0
Mounting Style: Mounting Peg
Product Type: Board to Board & Mezzanine Connectors
Stack Height: 5 mm
Factory Pack Quantity: 96
Subcategory: Board to Board & Mezzanine Connectors
Tradename: Q Strip
Manufacturer:Samtec
Datasheet:Samtec/QTH-Qstrip.pdf
