Description

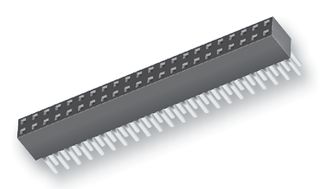

SAMTEC SSW-107-01-G-D Board-To-Board Connector, Dual, SSW Series, Through Hole, Receptacle, 14, 2.54 mm
The SSW-107-01-G-D is a 14-pole 2-row 2.54mm Through-hole SQ Post Socket Strip with 20µinch (0.51µm) gold-plated phosphor bronze contacts and LCP insulator. The SSW series straight pin socket strip compatible with DW, EW, HCMD, HCMS, HHSC, HMTSW, HTSS, HTSW, HW-SM, HW-TH LCW, MTLW, MTSW, PHT, TLW, TSM, TSS, TSSH, TSW, ZSS and ZW connectors.
- Orderable with single/dual/triple rows (-S/-D/-T/ -P/-Q options)
- Pitch spacing is 2.54mm (1 to 50 contacts per row) with straight orientation
- High operating temperature range of -55°C to 125°C for 20µ” gold plated contacts
- Black liquid crystal polymer (-S, -D) / black high temperature thermoplastic (-T) insulator material
- Complies with UL E111594 and CSA 090871_0_000 standards
- Contact material is phosphor bronze

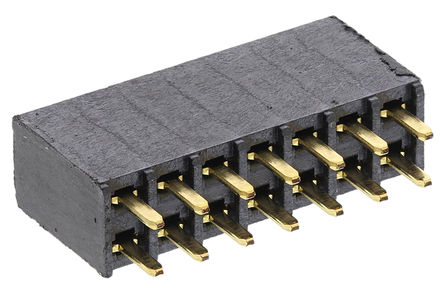

Samtec SSW Series 2.54mm 14 Way 2 Row Straight PCB Socket Through Hole Board to Board
Manufacturer Part Number: SSW-107-01-G-D
Manufacturer: Samtec
