Description

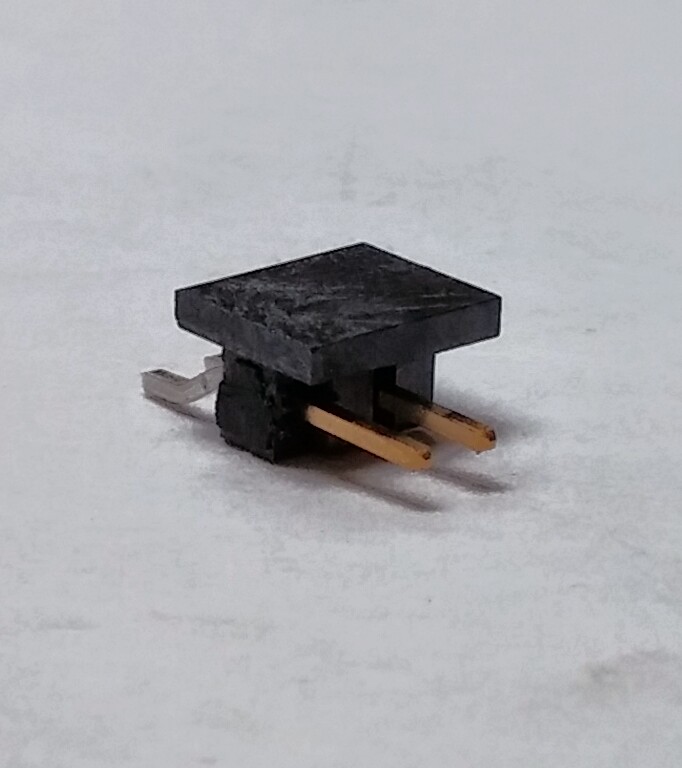

SAMTEC TSM-102-01-STLSHPTR Unshrouded Connector Header HDR 2 POS 2.54mm Solder RA SMD T/R
Contact Type Male Pin
Connector Type Header, Unshrouded
Number of Positions 2
Number of Positions Loaded All
Pitch 0.100″ (2.54mm)
Number of Rows 1
Row Spacing –
Contact Mating Length 0.230″ (5.84mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type –
Features –
Contact Finish Gold
Contact Finish Thickness 10µin (0.25µm)
Color Black
The TSM series from Samtec are surface mount terminal strip headers. These are unshrouded headers with 0.25″ (0.635mm) square post and mates with Samtec SSW, SSQ, SSM, BSW, ESW, ESQ, BCS, SLW, CES, HLE, IDSS, IDSD, SMSD and SMSS series of connectors. There is choice of standard post heights which provides solution to mate with any Samtec sockets.
- Pitch spacing is 2.54mm (2 to 36 contacts per row) with double row vertical pin (-DV)
- High operating temperature range of -55°C to 125°C for 30µ” gold plated contacts
- Contact material is phosphor bronze
- Black liquid crystal polymer insulator material
- Suitable for board stacking
- Complies with UL E111594 and CSA 090871_0_000 standards
- Extended life product
Applications
Industrial
Manufacturer Part Number: TSM-102-01-STLSHPTR
Manufacturer: Electronic Components
