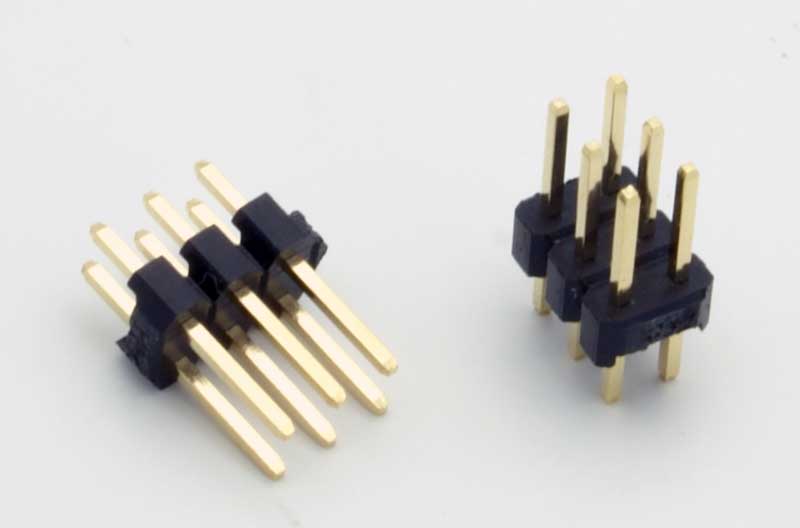

SAMTEC TSW-103-08-S-D Unshrouded Pin 6 Position 2.54mm Through Hole RoHS
Part Specifications:
Type Unshrouded Header
Pitch (mm) 2.54mm
Gender HDR
Number of Contacts 6POS
Number of Contact Rows 2
Mounting Style Through Hole
Body Orientation Straight
Contact Plating Gold Over Nickel
Packaging Bulk
Operating Temp Range -55C to 125C
Termination Method Solder
Current Rating (Max) 7.6A
Voltage Rating Max 550VAC
Contact Material Phosphor Bronze
Housing Material Polyester
Housing Color Black
Product Height (mm) 8.38mm
Product Length (mm) 7.62mm
Product Depth (mm) 5.08mm
The TSW series from Samtec are standard terminal strip headers. These are unshrouded through hole headers with 0.025″ (0.635mm) square post and mates with Samtec SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD and SMSS series of connectors. TSW series connectors are available with industry’s largest variety of standard pin counts, terminal lengths and are used where signal integrity and reliability is of major concern.
Orderable with single/dual/triple rows (-S/-D/-T/-Q option)
Pitch spacing is 2.54mm (1 to 50 contacts per row) with straight orientation
High operating temperature range of -55°C to 125°C for 10?” gold plated contacts
Terminal material is phosphor bronze
Black glass filled polyester insulator material
Complies with UL E111594 and CSA 090871_0_000 standards
Locking lead and locking clip feature is optional
Applications
Industrial
Manufacturer Part Number: TSW-103-08-S-D
