Description

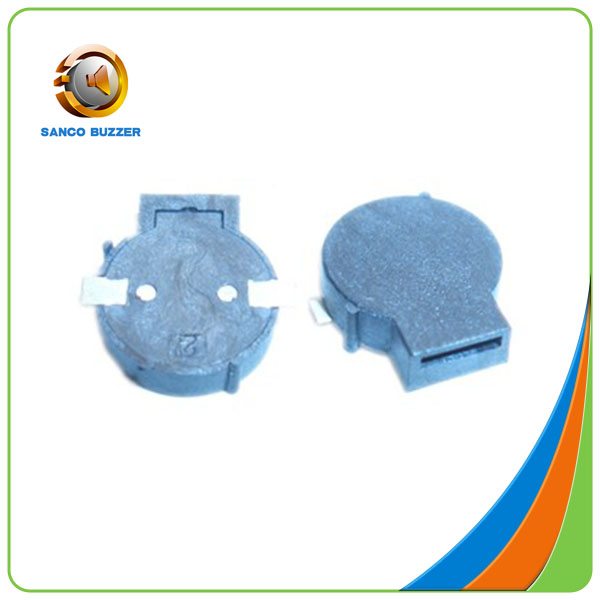

SANCO SMT-9025B SMD Buzzer 9.0*2.5mm, 3.6Vp-p, 2700Hz, 85dB, 100mA, 16Ω, LCP
Electrical Specifications:
Type Unit SMT-9025B-03627
Rated Voltage V3.6
Operating Voltage V2~ 5
* Rated Current (Max) mA100
* Min sound output at 10cm dB85
* Resonant Frequency Hz 2700Hz
Coil Resistance Ω 16±3
Operating Temperature -20 ~ +70C
Storage Temperature -30 ~+85C
Housing material/Color LCP / Black
Weight 0.8g
Type | Unit | SMB-1310A03 | SMB-1310A05 | SMB-1310A12 |
Rated Voltage | V | 3 | 5 | 12 |
Operating Voltage | V | 2~5 | 4~7 | 8~15 |
* Rated Current (Max) | mA | 30 | 30 | 30 |
* Min sound output at 10cm | dB | 75 | 85 | 85 |
* Resonant Frequency | Hz | 2400±400 | 2400±400 | 2400±400 |
Operating Temperature | °C | ~20~+70 | ~20~+70 | ~20~+70 |
Storage Temperature | °C | ~30~+80 | ~30~+80 | ~30~+80 |
Housing material | PPS | PPS | PPS | |
Lead pin material | Brass/gold plated | Brass/gold plated | Brass/gold plated | |
Weight | G | 2 | 2 | 2 |
Manufacturer Part Number: SMT-9025B-03627
Manufacturer: Electronic Components
