Description

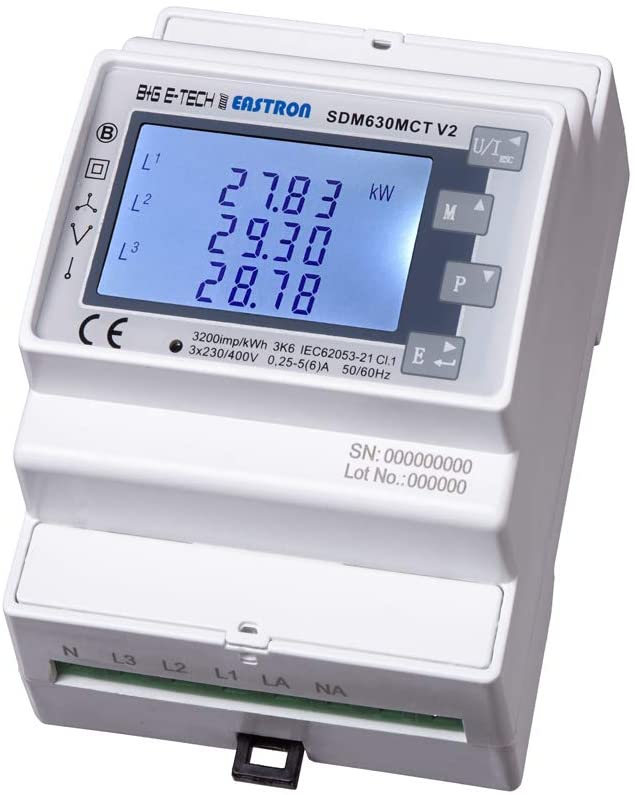

The Eastron SDM630 MCT V2 Three Phase Multi-function Energy Meter will measure and display all the fundamental electrical parameters for a cost-effective price, making it the ideal choice for sub-billing and energy management. The unit measures both single and three-phase supplies and is either 1A or 5A current transformer operated. A separate auxiliary (AC or DC) can be used to power the device.
Product Features
Multi-parameter measurement
Single Tariff 1A/5A CT operated
RS485 Port Modbus RTU
Bi-directional energy
Specification
Measuring Parameters:
Voltage (V)
Frequency (Hz)
Current (A)
Power (kW/Kva/Kvar)
Import
Export
Total energy (kWh/kvArh)
Maximum demand current (preset period of up to 60 minutes)
Maximum demand power (preset period of up to 60 minutes)
A universal in 1 phase AC (1p2w) as well as 3 phase three-phase three-phase three-phase three-phase power grids (3p3w 3p4w) usable smart meter with a variety of measuring and display options. ^Its small width of only 4 division units with easy snap-on mounting for 35 mm DIN rails and its large load range of up to 100 A make this device a direct measuring all-rounder. ^The legibility of the clear and illuminated display is in addition to the simple and direct operation only part of the countless advantages. In addition, the SDM630MCT V2 MID, as its name suggests, offers an RS485 modbus interface for remote reading and maintenance, as well as 2 pulse outputs for cover or release, which in turn makes it an ideal companion in photovoltaic technology.
Manufacturer:Electronic Components
Datasheet:SDM630MCTE-MID_User_Manual.pdf
