Description

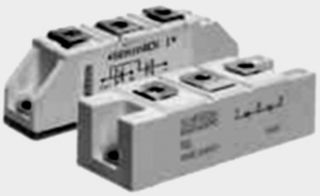

DIODE MODULE, 300V, 208A, SEMIPACK 2, No. of Phases:Single, Repetitive Reverse Voltage Vrrm Max:300V, Forward Current If(AV):208A, Forward Voltage VF Max:1.65V, Diode Module Configuration:1 Pair Common Cathode, Packaging:Each , RoHS
Specifications
Diode Configuration Common Cathode
Maximum Continuous Forward Current 208A
Number of Elements per Chip 2
Peak Reverse Repetitive Voltage 300V
Mounting Type Panel Mount
Package Type SEMIPACK2
Peak Forward Voltage 1.65V
Pin Count 3
Length 94mm
Width 34mm
Height 30mm
Dimensions 30 x 94 x 34mm
Peak Reverse Current 2µA
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +150 °C
Manufacturer Part Number: SKMD-202E03
Manufacturer: Semikron
