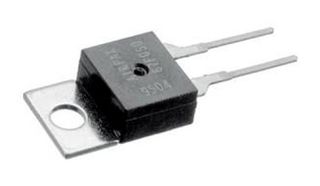

AIRPAX – AIRPAX 67L100 THERMAL SWITCH 100 DEG CIR
Product Overview
The 67L100 is a Subminiature Bimetal Disc Thermostat, limit open on rise. Positive snap action, single pole/single throw, which provides accurate and reliable sensing and switching in a single device. Fast, positive response with excellent repeatability. Temperature is pre-set at the factory and is non-adjustable in the field. Thermal conductivity is mainly through the terminals and the mounting bracket making the unit ideal for both surface mount and ambient air sensing. The nickel-plated copper mounting bracket comes standard or you can utilize the laminated plastic mounting bracket for increased dielectric strength and VDE approval. Airpax™ 6700 series is also ideally suited for use on crowded PC boards. Typical uses include turning on an indicator light, sounding an audible alarm, switch on a control circuit to send a message to a display screen or even switching a circuit to shut down a system.
- Gold-plated contact
- Ideal for surface and air sensing on PC boards and heat sinks
- Up to 20000 life cycles at maximum standard amperage
- Up to 100,000 life cycles at maximum gold contact amperage
- -40 to 130°C Operating temperature
Applications
Computers & Computer Peripherals; Automotive; Avionics; Medical
Description
- Thermostat
- Body Material:PPS (Polyphenylene Sulfide)
- Color:Black
- Contact Rating:1A at 48VDC
- Leaded Process Compatible:Yes
- Mounting Type:PC Board Thru Hole
- Operating Temp. Min:100°C
- Peak Reflow Compatible (260 C):Yes
- RoHS Compliant: Yes
Manufacturer Part Number: 67L100
