Description

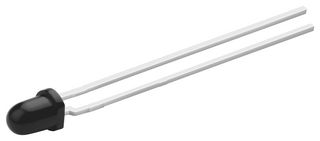

SFH 229 FA OSRAM Opto Semiconductor Photodiode 900nm 10ns 34 Radial
Specifications
Manufacturer: Osram Opto Semiconductor
Product Category: Photodiodes
RoHS
Product: PIN Photodiodes
Package / Case: T-1
Mounting Style: Through Hole
Peak Wavelength: 900 nm
Dark Current: 50 pA
Vr – Reverse Voltage: 20 V
Rise Time: 10 ns
Fall Time: 10 ns
Half Intensity Angle Degrees: 17 deg
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 100 C
Height: 5.2 mm
Length: 4 mm
Width: 3 mm
Brand: OSRAM Opto Semiconductors
If – Forward Current: 100 mA
Noise Equivalent Power – NEP: 0.65E-14 W/sqrt Hz
Pd – Power Dissipation: 150 mW
Photocurrent: 20 uA
Product Type: Photodiodes
Qualification: AEC-Q101
Responsivity: 0.6 A/W
Factory Pack Quantity: 2000
Subcategory: Optical Detectors and Sensors
Vf – Forward Voltage: 1.3 V
Part # Aliases: Q62702P0216
Unit Weight: 0.007055 oz
Manufacturer Part Number: SFH229FA
Manufacturer: OSRAM
