Description

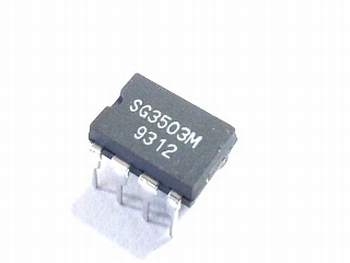

SG3503M Microchip / Microsemi Voltage References Voltage Reference – Precision V-Ref Precision 2.5V 10mA 8-Pin PDIP RoHS
Key Features:
Output voltage trimmed to 1%
Input voltage range of 4.5 to 40V
Temperature coefficent of 10ppm/C
Quiescent current typically 1.5mA
Output current in excess of 10mA
Interchangeable with MC1503 and AD580 This monolithic integrated circuit is a fully self-contained precision voltage reference generator, internally trimmed for 1% accuracy. Requiring less than 2mA in quiescent current, this device can deliver in excess of 10mA with total load- and line-induced tolerances of less than 0.5%. In additon to voltage accuracy, internal trimming achieves a temperature coefficient of output voltage of typically 10 ppm/C. As a result, these references are excellent choices for application to critical instrumentation and D-to-A converter systems. The SG1503 is specified for operation over the full military ambient temperature range of -55C to 125C , while the SG2503 is designed for -25C to 85C and the SG3503 for commercial applications of 0C to 70C.
Specifications
Manufacturer:Microchip
Product Category:Voltage References
RoHS
Mounting Style:Through Hole
Package / Case:DIP-8
Reference Type:Ground Precision References
Output Voltage:2.5 V
Initial Accuracy:1 %
Temperature Coefficient:10 PPM/C
Minimum Operating Temperature:0 C
Maximum Operating Temperature:+ 70 C
Packaging:Tube
Input Voltage:4.5 V to 40 V
Brand:Microchip / Microsemi
Shutdown:No Shutdown
Supply Current – Max:2 mA
Maximum Output Voltage:2.525 V
Operating Supply Current:1.5 mA
Product Type:Voltage References
Factory Pack Quantity:50
Subcategory:PMIC – Power Management ICs
Manufacturer: Microsemi
MFG Part #: SG3503M
