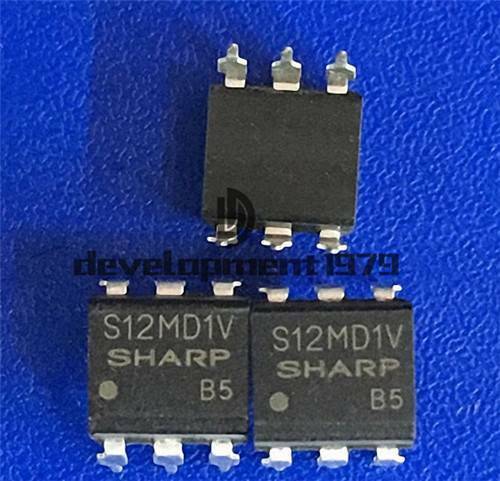

SHARP S12MD1V OPT Photothyristor coupler Encapsulation DIP-6
Specifications
EU RoHSSupplier Unconfirmed
Number of Channels per Chip1
Zero-Crossing CircuitNo
Maximum Turn-On Time (us)60
StandardUL
Output DeviceSCR
Output TypeAC
Maximum Output Voltage (VAC)280
Minimum Isolation Voltage (Vrms)5000
Typical Forward Voltage (V)1.2
Maximum Forward Voltage (V)1.4
Repetitive Peak Off-State Voltage (V)400
Maximum Reverse Voltage (V)6
Typical Critical Rate of Rise of Off-State Voltage (V/us)3(Min)
Maximum Forward Current (mA)50
Minimum Trigger Current (mA)15(Max)
Maximum Continuous Output Current (mA)200
Repetitive Peak Off-State Current (uA)1
Minimum Operating Temperature (°C)-30
Maximum Operating Temperature (°C)100
MountingThrough Hole
Package Height (mm)3.5
Package Length (mm)7.12
Package Width (mm)6.5
PCB changed6
Standard Package NameDIP
Supplier PackagePDIP
Pin Count6
Lead ShapeThrough Hole
| Number of Elements | 1 |
| Forward Voltage | 1.4V |
| Reverse Breakdown Voltage | 6V |
| Mounting | Through Hole |
| Pin Count | 6 |
| Operating Temperature Classification | Commercial |
| Forward Current | 50mA |
Manufacturer:Sharp Microelectronics
Datasheet:STMicro/s12md1v_e.pdf
