Description

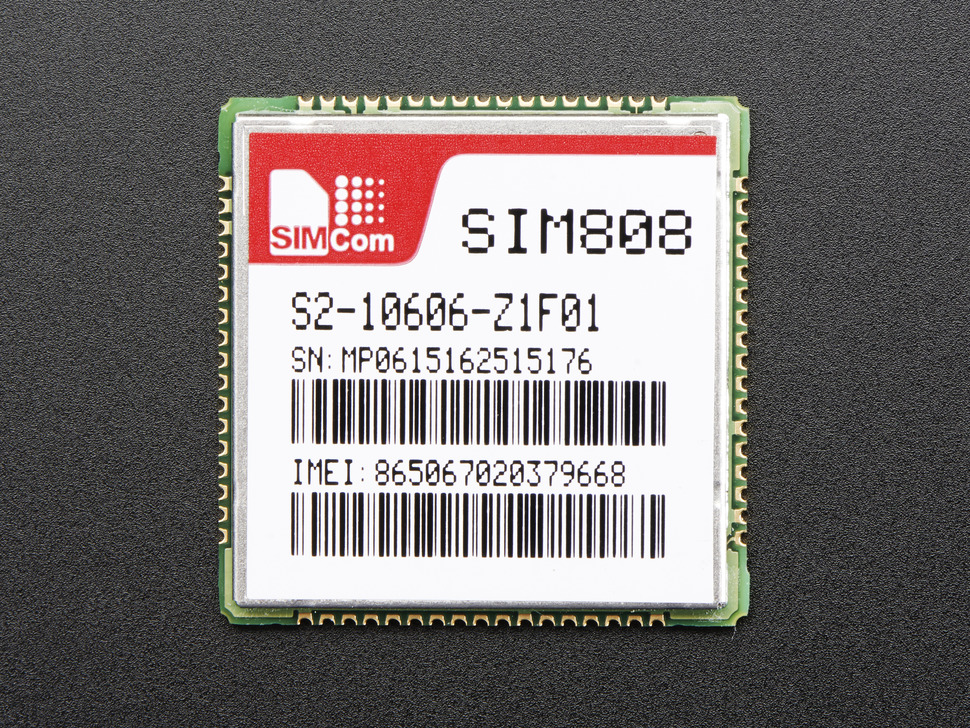

The SIM808 GSM GPRS Module is at the heart of our Adafruit FONA 808 – Mini Cellular GSM + GPS Breakout. For people who want to integrate a cellular (GSM/GPRS) module into their design without the full breakout, this hand-solderable module is pretty nice! Please note we don’t provide any tech support for this module, but we do have a schematic as well as a collection of datasheets and app notes that can be used to interface.
- Quad-band 850/900/1800/1900MHz – connect onto any global GSM network with any 2G SIM (in the USA, T-Mobile is suggested)
- Fully-integrated GPS (MT3336 chipset with -165 dBm tracking sensitivity) that can be controlled and query over the same serial port
- Make and receive voice calls using a headset or an external 32Ω speaker + electret microphone
- Send and receive SMS messages
- Send and receive GPRS data (TCP/IP, HTTP, etc.)
- PWM/Buzzer vibrational motor control
- AT command interface with “auto baud” detection
Here’s the GPS specifications:
- 22 tracking /66 acquisition channels
- GPS L1 C/A code
- Sensitivity
- Tracking: -165 dBm
- Cold starts : -147 dBm
- Time-To-First-Fix
- Cold starts: 30s (typ.)
- Hot starts: 1s (typ.)
- Warm starts: 28s (typ.)
- Accuracy: approx 2.5 meters
Interfaces
•68 SMT pads including
•Analog audio interface
•PCM interface(optional)
•SPI interface (optional)
•RTC backup
•Serial interface
•USB interface
•Interface to external SIM 3V/1.8V
•Keypad
interface
•GPIO
•ADC
•GSM Antenna pad
•Bluetooth Antenna pad
•GPS Antenna pad
Certifications(Plan):
•CE •GCF •FCC •ROHS •REACH
General features
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+ – Class 4 (2 W @ 850/900MHz) – Class 1 (1 W @ 1800/1900MHz)
•Bluetooth: compliant with 3.0+EDR
•Dimensions: 24*24*2.6mm
•Weight: 3.3g
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40°C ~85°C
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support •Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD up to 14.4 kbps
•USSD Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•DTMF
•Jamming Detection
•Audio Record
•TTS (optional)
•Embedded AT (optional) Compatibility
•AT cellular command interface
Specification for GPS Receiver type -22 tracking /66 acquisition -channel -GPS L1 C/A code Sensitivity -Tracking: -165 dBm -Cold starts : -147 dBm Time-To-First-Fix -Cold starts: 30s (typ.) -Hot starts: 1s (typ.) -Warm starts: 28s (typ.) Accuracy -Horizontal position : <2.5m CEP
Manufacturer Part Number: SIM808
Manufacturer: Electronic Components
