Description
SJN-002PT-0.9 JST Crimp Contact Pin, SJN Series, Socket Crimp, 24 AWG, Tin Plated Contacts, JST SJN Series Housings RoHS

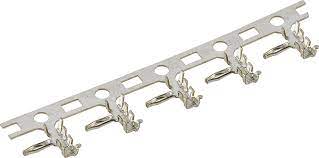

The SJN-002PT-0.9 is a Receptacle Crimp Contact made of brass with tin-plated finish. It accepts 28 to 24AWG wire and used for 2mm pitch board-in crimp style SJN connectors.
3A Current rating
-25 to 85C Operating temperature range
Applications
Industrial
Product Information
Product Range: SJN Series
Contact Gender: Socket
Contact Termination Type: Crimp
Wire Size AWG Max: 24AWG
Contact Plating: Tin Plated Contacts
For Use With: JST SJN Series Housings
Wire Size AWG Min: 28AWG
Contact Material: Brass
Manufacturer: JST
MFG Part #: SJN-002PT-0.9
