Description

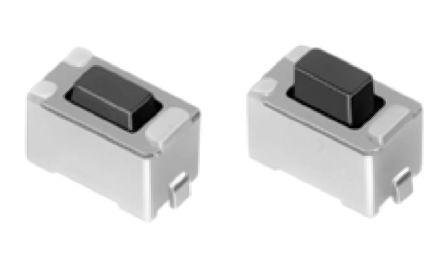

SKQMASE010 Alps Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 12VDC 0.8mm Surface Mount
Specifications
Manufacturer:Alps Alpine
Product Category:Tactile Switches
RoHS
Illuminated:Non-Illuminated
Mounting Style:SMD/SMT
Mounting Direction:Straight
Stem Height:4.3 mm
Operating Force:1.6 N
Current Rating:50 mA
Voltage Rating DC:12 VDC
Ground Terminal:No
Contact Form:SPST
Termination Style:Gull Wing Lead
Color:Black
Length:6 mm
Width:3.5 mm
Height:4.3 mm
Series:SKQM
Packaging:Cut Tape
Packaging:Reel
Contact Plating:Silver
Brand:Alps Alpine
Travel:0.25 mm
Maximum Operating Temperature:+ 70 C
Minimum Operating Temperature:- 20 C
Product Type:Tactile Switches
Factory Pack Quantity:2000
Subcategory:Switches
Tradename:TACT Switch
Unit Weight:0.005326 oz
Alps Tactile or Tact switches are SPST snap action switches to be used with small currents. This series also provide a minimum rating of 10 A at 1 V dc and a maximum rating of 50 mA at 12 V dc. These Tact switches have SMT terminals, low contact resistance, high contact reliability and come in a wide selection of operating forces and switching travels.
Manufacturer:Alps
Datasheet:SKQMASE010.pdf
