Description

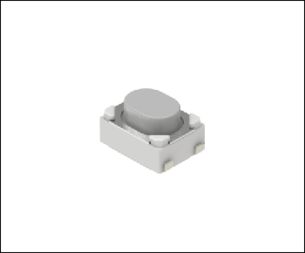

SKRPACE010 Alps SKRP Series 4.2 x 3.2 mm 255 N Top Push Surface Mount Switch
Type Surface mount
Operating force 2.55N
Operating direction Top push
Travel 0.2mm
Operating life
(5mA 5V DC) 50,000 cycles
Initial contact resistance 500mOHM max.
Stem color Natural
Series type Sharp feeling type
Operating temperature range -30? to +85?
Rating (max.) 50mA 16V DC
Rating (min.) 10uA 1V DC
Electrical performance Insulation resistance 100MOhm min. 100V DC for 1min.
Voltage proof 250V AC for 1 min.
Durability Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively
Environmental performance Cold -302? for 96h
Dry heat 80+-2 for 96h
Damp heat 60+-2, 90 to 95%RH for 96h
Manufacturer:Alps
Datasheet:SKRPACE010.pdf
