Description

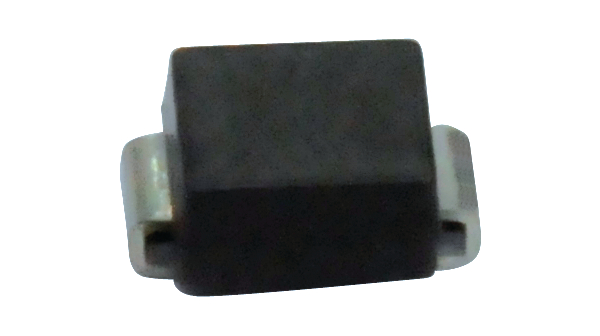

SM30T39CAY STMicroelectronics ESD Suppressor TVS SM30T Series 3 kW 53.3 Vcl Bi-Directional Automotive Transil – DO-214AB
Specifications
EU RoHS Compliant with Exemption
Type TVS
Configuration Single
Direction Type Bi-Directional
Number of Elements per Chip 1
Maximum Working Voltage (V)33
Maximum Clamping Voltage (V)69.7
Maximum Leakage Current (uA)0.2
Peak Pulse Power Dissipation (W)3000
Minimum Operating Temperature (C)-55
Maximum Operating Temperature (C)175
Supplier Temperature Grade Automotive
Packaging Tape and Reel
Standard Package Name DO-214-AB
Supplier Package SMC
Pin Count 2
MountingSurface Mount
Package Height 2.45(Max)
Package Length 7.15(Max)
Package Width 6.25(Max)
PCB changed 2
Lead Shape J-Lead
Manufacturer Part Number: SM30T39CAY
Manufacturer: STMicroelectronics
