Description

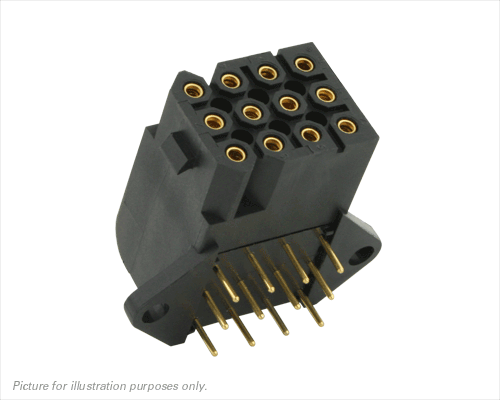

SMS series is a plastic rectangular connector with a quick mating mechanism, available from 3 to 36 positions. Just push to mate, press and release to unmate!
This series offers a complete interconnect solution due to a wire version, a PCB version and accessory options. Cable, plug and receptacles feature pin-protection skirts, positive polarization and are offered with or without integrated strain relief hoods.
With a pitch of 5.08mm and a low profile version availability, SMS series is ideal for tight space integration and high density applications.
The SMS series also offers a flame retardant version compliant with EN 50467, as well UL recognized (file number E238675) and CSA certified (file number LR44961-21) for qualification of your equipment and a guarantee of safe use.
SPECIFICATIONS
EU RoHS Compliant
Connector Type COMBINATION LINE CONNECTOR
Body/Shell Style RECEPTACLE
Contact Finish – Mating GOLD (16) OVER NICKEL
Contact Finish – Termination GOLD (16) OVER NICKEL
Contact Gender FEMALE
Contact Material NOT SPECIFIED
DIN Conformance NO
Manufacturer:TE Connectivity
Datasheet:Others/SOUR-S-A0001120346-1.pdf
