SS-05MSS SATAGear 50cm 20-inch SATA Cable

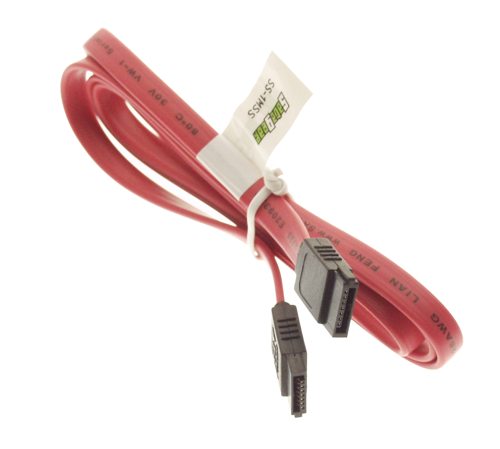

SS-05MSS SATAGear 50cm 20-inch SATA Internal Device Cable Straight to Straight

ENQUIRY!
SKU: SS-05MSS. Category: Tags: , Brand:

Description

SS-05MSS SATAGear 50cm 20-inch SATA Internal Device Cable

  • SATAGear introduces a New Line of Hard Drive Cables With the our, New Line or Serial ATA Signal Cables. These Cables connect your high speed Serial ATA device to a Serial ATA Controller, which offers you improved Data transfer rates(up to 3.0 Gbps) as well as, a narrow Cable design to increase Internal air flow. Perfect For the Desktop or server that has multiple Drives, making bandwidth advantages worthwhile. These Cables offer easy installation and offer dual 7-pin female connectors. Lifetime Product Replacement Warranty.
  • Product Features
    • · Connect your high-speed Serial ATA device to a Serial ATA Controller
    • · Support Data transfer rates of up to 3.0 Gbps
    • · Narrow Cables design: 1) simplifies Cable, routing, and installation 2) improves air flow within CPU(NO more BIG ribbons blocking air movement
    • · Meets Serial ATA 1.0 Standards
    • · Cable is shielded to protect against EMI/RFI
  • System and other Requirements
    • · Description: Serial ATA(sata)Signal Cable
    • · Length: 4″ up to 40”
    • · Connector a: 7 pin female
    • · Connector b: 7 pin female
  • Warranty
    • · Standard Warranty: Lifetime
  • Product Technical Specifications
    • · Product Type: Internal SATA Device Cable
  • Cable
    • · Cable Type: Internal Serial ATA Cable
    • · Cable length (4 inch up to 40 inch):
  • Connector(s)
    • · Connector Type (if Part of Cable, conn. 1): 7 pin
    • · Connector 1 gender: Female
    • · Connector 2 Type: 7 pin
    • · Connector 2 gender: Female
  • Package Contains the Following
    • · SATA PolyBaged Cable, Serial ATA Signal Cable

Connect high speed Serial ATA device to a Serial ATA Controller, which offers an improved Data transfer rates(up to 1.5 GBPS) as well as, a narrow Cable design to increase Internal air flow. Serial ATA 150 Cable

  • Cable for Serial ATA 150 hard drives
  • Serial ATA interface
  • 1 device, 19in

    Cable: [(26 AWG * 1P + A)+28AWG*2C]*2 , AWM STYLE 2725 80 DEGREES CELSIUS 30V VW-1

    • Signal Pair
      • Conductor: 26AWG Solid Tinned Copper
      • Isolator: Foam PE or Foam PP
      • Shielding: Hot Melt Aluminum Mylar Spirally Wrapped
    • Jacket: 80 degree Celsius PVC OD 2.2mm*7.80mm +/- 0.2

    Connector:

    • Material:
      • Housing: Temperature polyester & glass fiber , UL 94V-0
      • Terminal: Copper Alloy
      • Cover: ABS, UL 94V-0
    • Plating:
      • Contact area: 15u” gold plated over 50u” Nickel

    High Frequency Character:

  • Impedance: 100 +/- 15 ohms (Mated Connector)
  • Attenuation: 6 dB Max from 10MHz ~ 4500 MHz
  • Intra Pair Skew: 10 ps Max
  • Rise Time: 85 ps Max

Technical Information:
50cm 20-inch SATA Internal Device Cable Straight to Straight

  • Sata is a superior technology to parallel ATA becouse it uses thinner,more flexible cable and fewer pins in connection,improving airflow and allows for easier board routing. It is intended to provide scalable performance thought-out next decade.
  • Connector Physical Specifications:
  • Housing Material: Thermoplastic
  • Contact Material: Copper Alloy
  • Plating Contact Area: Gold 15u”
  • Operating Temperature: -25C to + 85C
  • Connector Electrical Specifications:
  • Contact Current Rating: 1.5A per Pin
  • Contact Resistance: 30mW Max.
  • Dielectric Withstanding Voltage: 500VAC for 1 minute at Sea Level.
  • Insulation Resistance: 100MW min.
  • Custom Cable Lenght up to 40inches.

Manufacturer Part Number: SS-05MSS.
