Description

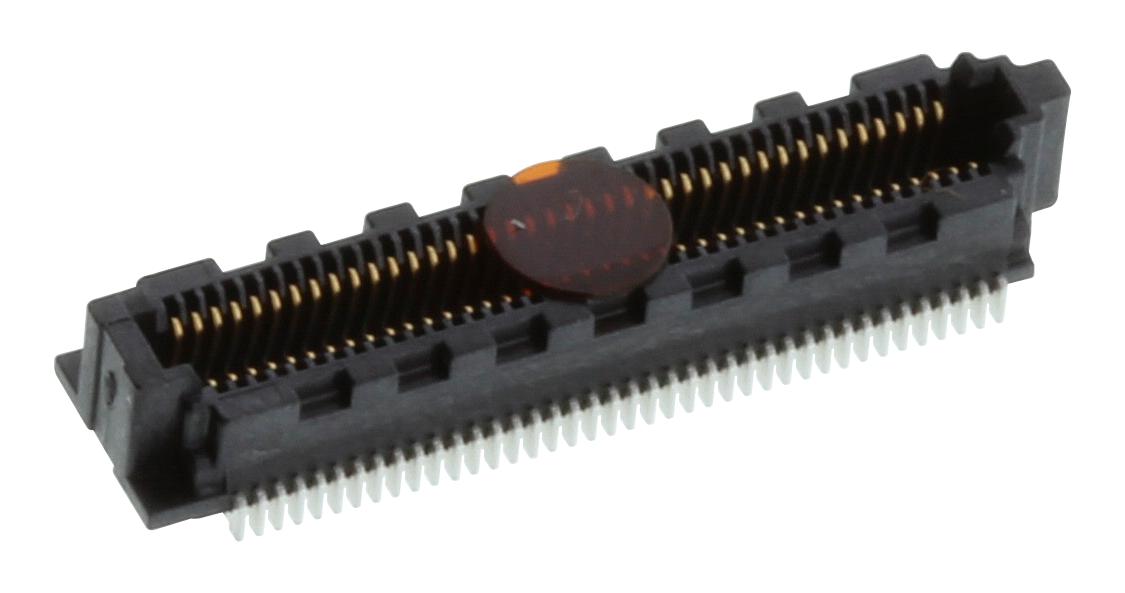

SS4-20-3.50-L-D-K-TR Samtec Board to Board & Mezzanine Connectors 0.40 mm Razor Beam LP Ultra Fine Pitch Socket Strip 0.4MM, 40WAY, Product Range:SS4 Series, Contact Termination Type:Surface Mount, Gender:Receptacle, No. of Contacts:40, Pitch Spacing:0.4mm, Contact Plating:Gold, Contact Material:Phosphor Bronze, No. of Rows:2, , RoHS
Features
Ultra fine 0.40 mm pitch
28 Gbps performance
Stack heights from 4 mm – 6 mm
Slim footprint
Up to 100 I/Os
Compatible with mPOWER™ for power/signal flexibility.
Specifications
Manufacturer: Samtec
Product Category: Board to Board & Mezzanine Connectors
RoHS
Product: Sockets
Number of Positions: 40 Position
Pitch: 0.4 mm
Number of Rows: 2 Row
Termination Style: SMD/SMT
Mounting Angle: Straight
Current Rating: 1.6 A
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 55 C
Series: SS4
Packaging: Cut Tape
Packaging: Reel
Application: Power, Signal
Contact Plating: Gold
Housing Material: Liquid Crystal Polymer (LCP)
Brand: Samtec
Contact Material: Phosphor Bronze
Flammability Rating: UL 94 V-0
Mounting Style: SMD/SMT
Product Type: Board to Board & Mezzanine Connectors
Stack Height: 4 mm
Factory Pack Quantity: 1025
Subcategory: Board to Board & Mezzanine Connectors
Tradename: Razor Beam LP
Manufacturer Part Number: SS4-20-3.50-L-D-K-TR
Manufacturer: Samtec
