Description

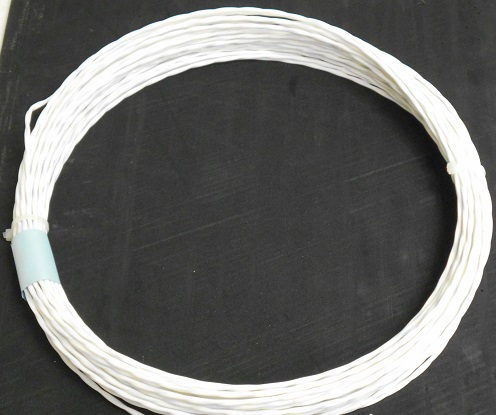

MIL Spec Wire
^Medium Wall
^MIL-W-22759/9 Wire Construction:
^ Conductor: Silver Plated Copper
^ Insulation: Extruded PTFE, .010 Nominal Wall Thickness
^
^MIL-W-22759/9 Wire Ratings:
^
^ Voltage Rating: 1,000 Volts
^ Temperature Rating: -55C to +200C
^
^MIL-W-22759/9 Wire Applications:
^
^ The M22759/9 MIL Spec Wire may be used in aerospace applications or where high temperatures, smoke emission and flammability are a concern.
^
^MIL-W-22759/9 Wire Identification:
^
^ Green or white print on the insulation
^ Military part number including AWG
Judd Wire is a high technology wire company, specializing in the use of electron beam crosslinked thermosets for wire insulation. By applying irradiation crosslinking technology to insulating materials, Judd Wire meets the needs of the wire and cable industry for economical, high-performance products. Judd Wire manufactures electronic wire and cable in over 100 styles recognized by Underwriters Laboratory, Canadian Standards and/or Military Specifications.
Manufacturer Part Number: SS7614-18-9
Manufacturer: Electronic Components
