Description

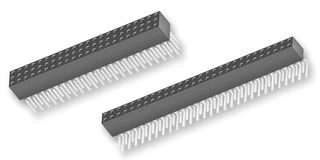

SSW-119-01-T-S Samtec Board to Board & Mezzanine Connectors .100 Tiger Socket Strip 19 Position .100″ Receptacle Through Hole RoHS
Specifications
Manufacturer:Samtec
Product Category:Board to Board & Mezzanine Connectors
RoHS
Product:Headers
Pitch:2.54 mm
Termination Style:Through Hole
Mounting Angle:Straight
Current Rating:4.7 A
Minimum Operating Temperature:- 55 C
Contact Material:Phosphor Bronze
Housing Material:Liquid Crystal Polymer (LCP)
Series:SSW
Packaging:Bulk
Brand:Samtec
Flammability Rating:UL 94 V-0
Mounting Style:Straight Pin
Product Type:Board to Board & Mezzanine Connectors
Factory Pack Quantity:1
Subcategory:Board to Board & Mezzanine Connectors
Tradename:Tiger Buy
Unit Weight:0.041499 oz
The SSW series from Samtec are Tiger Buy socket strips. These are through hole socket strips with 0.025″ (0.635mm) square post sockets and mates with Samtec TSW, MTSW, MTLW, EW, ZW, TSS, ZSS, TSM, TSSH and HTSS series of connectors. SSW series connectors have standard and low insertion force Tiger Buy contacts with standard solder tails.
Manufacturer: Samtec
MFG Part #: SSW-119-01-T-S
