Description

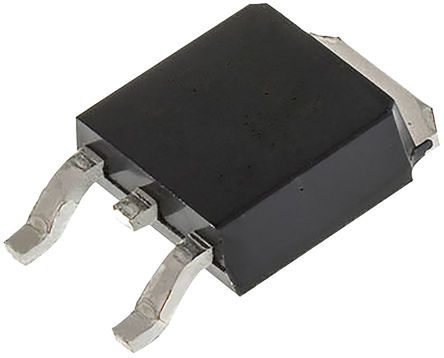

STD80N6F6 STMicroelectronics N-Channel 60 V 6.5 mO Surface Mount STripFET F6 Power Mosfet – TO-252
Specifications
Manufacturer: STMicroelectronics
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: SMD/SMT
Package / Case: TO-252-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 60 V
Id – Continuous Drain Current: 80 A
Rds On – Drain-Source Resistance: 6.5 mOhms
Vgs th – Gate-Source Threshold Voltage: 4.5 V
Vgs – Gate-Source Voltage: 20 V
Qg – Gate Charge: 122 nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 175 C
Configuration: Single
Pd – Power Dissipation: 120 W
Qualification: AEC-Q100
Packaging: Cut Tape
Packaging: Reel
Series: N-channel STripFET
Transistor Type: 1 N-Channel
Brand: STMicroelectronics
Product Type: MOSFET
Factory Pack Quantity: 2500
Subcategory: MOSFETs
Unit Weight: 0.139332 oz
Lifecycle: End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer.
Manufacturer Part Number: STD80N6F6
Manufacturer: STMicroelectronics
