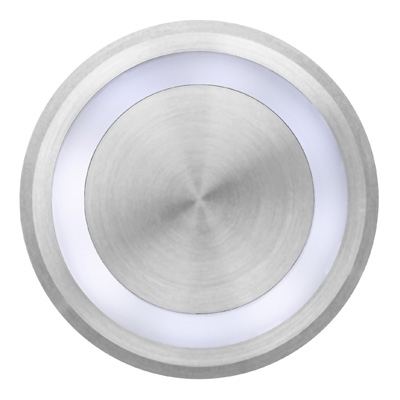

07225199 – PIEZO STAINLESS STEEL SWITCH, 22MM, MOMENTARY PULSE, WHITE ILLUMINATED
Stern’s Smartswitch Piezo switches line, offers advanced technology in a high finish. Stern switches can be used in outdoor machines like fuel pumps, car wash stations, weighing stations etc, where they are exposed to harsh weather conditions. In applications where there is no need for machine status indication, Stern’s non-illuminated range is advisable. Ring or dot illuminated switches, provides an advanced user interface in the form of visual operation-feedback or switch mode indication, and are advisable for more advanced applications.
Advantages:
Extremely long lifetime (>10 million cycles)
Vandal resistant
Extreme water proof and dirt resistant (IP68)
Easy touch activation
Efficient Human Machine Interface (HMI) solution
- 22mm Mounting Diameter
- LED White Ring Illuminated 24V AC/DC
- Rated Voltage: 0-24V AC-DC
- Switch Current: 1A
- Waterproof Protection: IP68
- Switching Pulse Time up to 300ms
- Flat Head Type
- ATex 94/9/EC Certified
ELECTRIC PUSH BUTTONS
- Non-mechanical switch using Piezo electric technology by applying mechanical stress to certain effective materials to generate the electric charge when pressed
- Used in outdoor machines – ex. fuel pumps, car wash stations, weighing stations, etc. – where piezo switches are exposed to harsh weather conditions
- Conform to ATEX directive
Manufacturer:Stern Switches
Datasheet:07225199.pdf
