Description

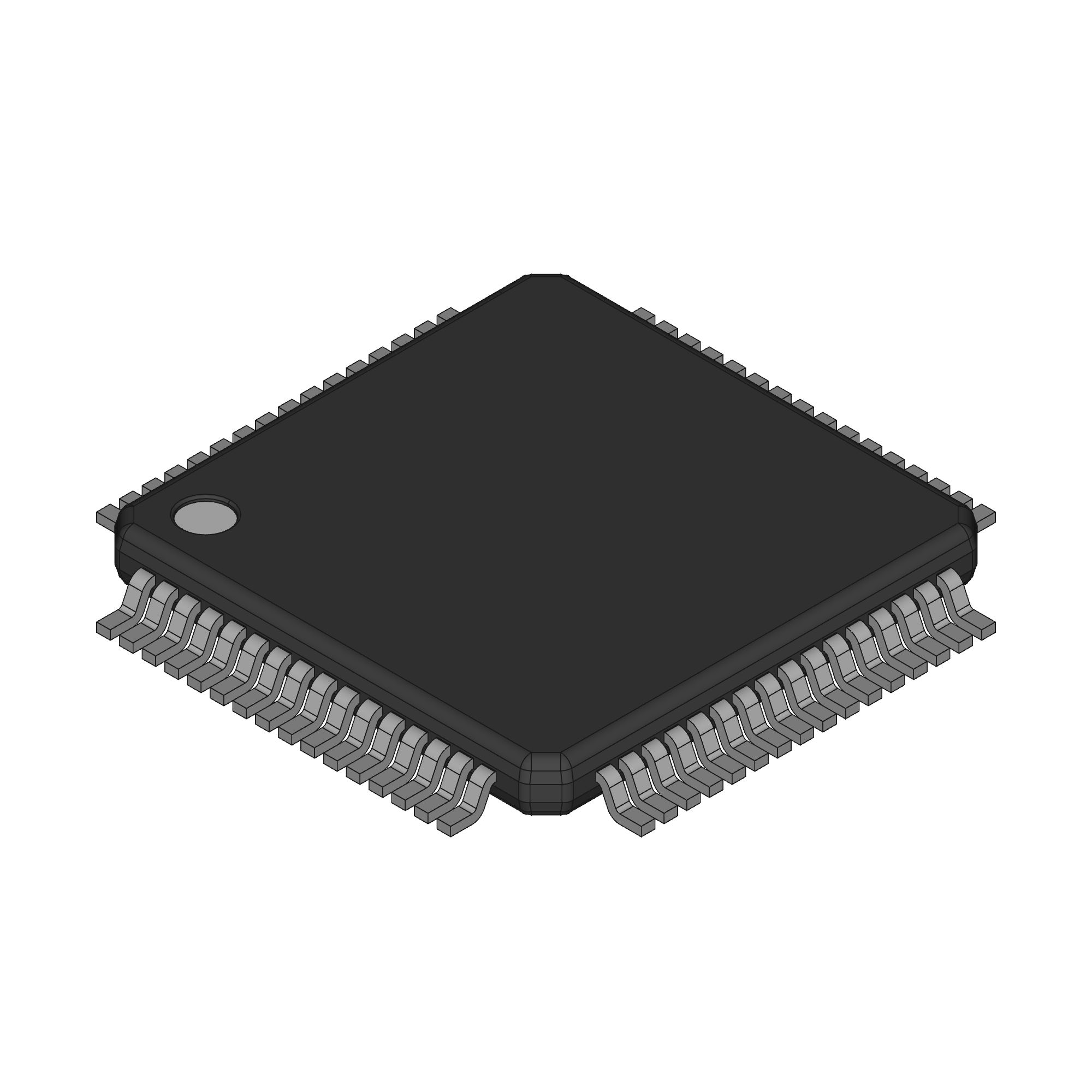

STMicroelectronics STM32F101RCT6 MCU 32-bit STM32F ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 64-Pin LQFP Tray RoHS
Specifications
Manufacturer:STMicroelectronics
Product Category:ARM Microcontrollers – MCU
Series:STM32F101RC
Mounting Style:SMD/SMT
Package / Case:LQFP-64
Core:ARM Cortex M3
Program Memory Size:256 kB
Data Bus Width:32 bit
ADC Resolution:12 bit
Maximum Clock Frequency:36 MHz
Number of I/Os:51 I/O
Data RAM Size:32 kB
Operating Supply Voltage:2 V to 3.6 V
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Packaging:Tray
Height:1.4 mm
Length:10 mm
Program Memory Type:Flash
Width:10 mm
Brand:STMicroelectronics
Data RAM Type:SRAM
Interface Type:I2C, SPI, USART
Moisture Sensitive:Yes
Number of ADC Channels:16 Channel
Number of Timers/Counters:6 Timer
Processor Series:ARM Cortex M
Product Type:ARM Microcontrollers – MCU
Factory Pack Quantity:960
Subcategory:Microcontrollers – MCU
Supply Voltage – Max:3.6 V
Supply Voltage – Min:2 V
Tradename:STM32
Unit Weight:0.012088 oz
The STM32F101xC, STM32F101xD and STM32F101xE access line family incorporates the high-performance ARM Cortex -M3 32-bit RISC core operating at a 36 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 48 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer one 12-bit ADC, four general-purpose 16-bit timers, as well as standard and advanced communication interfaces: up to two ICs, three SPIs and five USARTs.The STM32F101xx high-density access line family operates in the 40 to +85 C temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.These features make the STM32F101xx high-density access line microcontroller family suitable for a wide range of applications such as medical and handheld equipment, PC peripherals and gaming, GPS platforms, industrial applications, PLC, printers, scanners alarm systems and video intercom.
Manufacturer:STMicroelectronics
Datasheet:STMicro/STM32F101.pdf
