Description

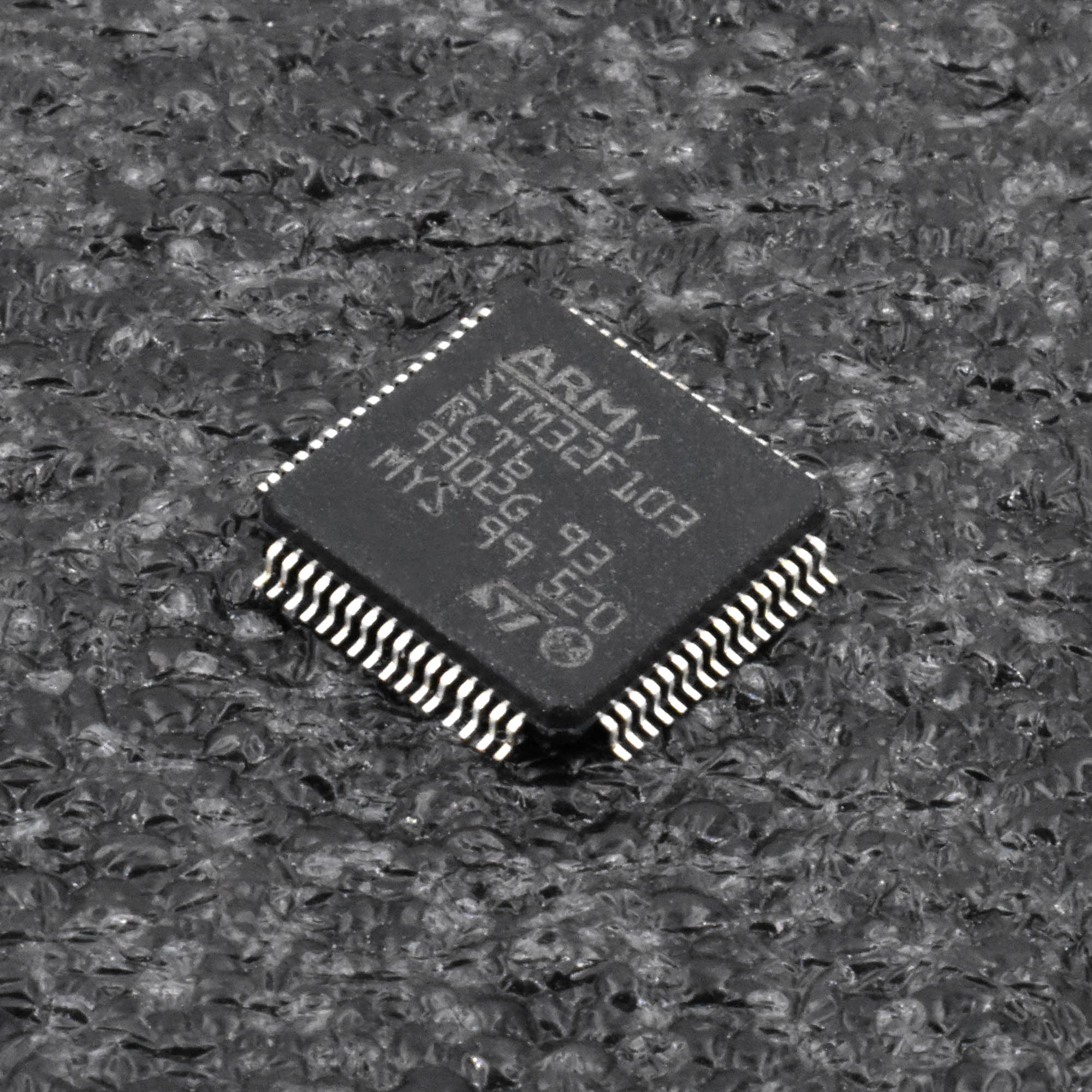

STM32F103RCT6TR STMicroelectronics ARM Microcontroller MCU 32-bit STM32F ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 64-Pin LQFP Tray RoHS
Specifications
Manufacturer:STMicroelectronics
Product Category:ARM Microcontrollers – MCU
Series:STM32F103RC
Mounting Style:SMD/SMT
Package / Case:LQFP-64
Core:ARM Cortex M3
Program Memory Size:256 kB
Data Bus Width:32 bit
ADC Resolution:12 bit
Maximum Clock Frequency:72 MHz
Number of I/Os:51 I/O
Data RAM Size:48 kB
Operating Supply Voltage:2 V to 3.6 V
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Packaging:Cut Tape
Packaging:Reel
Height:1.4 mm
Length:10 mm
Program Memory Type:Flash
Width:10 mm
Brand:STMicroelectronics
Data RAM Type:SRAM
Interface Type:CAN, I2C, SPI, USART
Moisture Sensitive:Yes
Number of ADC Channels:16 Channel
Number of Timers/Counters:8 Timer
Processor Series:ARM Cortex M
Product Type:ARM Microcontrollers – MCU
Factory Pack Quantity:1000
Subcategory:Microcontrollers – MCU
Supply Voltage – Max:3.6 V
Supply Voltage – Min:2 V
Tradename:STM32
Unit Weight:0.012088 oz
The STM32F103xC, STM32F103xD and STM32F103xE performance line family incorporates the high-performance ARM Cortex -M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two ICs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN.The STM32F103xx high-density performance line family operates in the 40C to +105C temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.These features make the STM32F103xx high-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems video intercom, and HVAC.
Manufacturer:STMicroelectronics
Datasheet:STMicro/stm32f103rc.pdf
