Description
STM32F103ZCT6 STMicroelectronics ARM Microcontroller MCU 32-Bit 72MHz 256KB (256K x 8) FLASH 144-LQFP RoHS
Specifications
Manufacturer:STMicroelectronics
Product Category:ARM Microcontrollers – MCU
Series:STM32F103ZC
Mounting Style:SMD/SMT

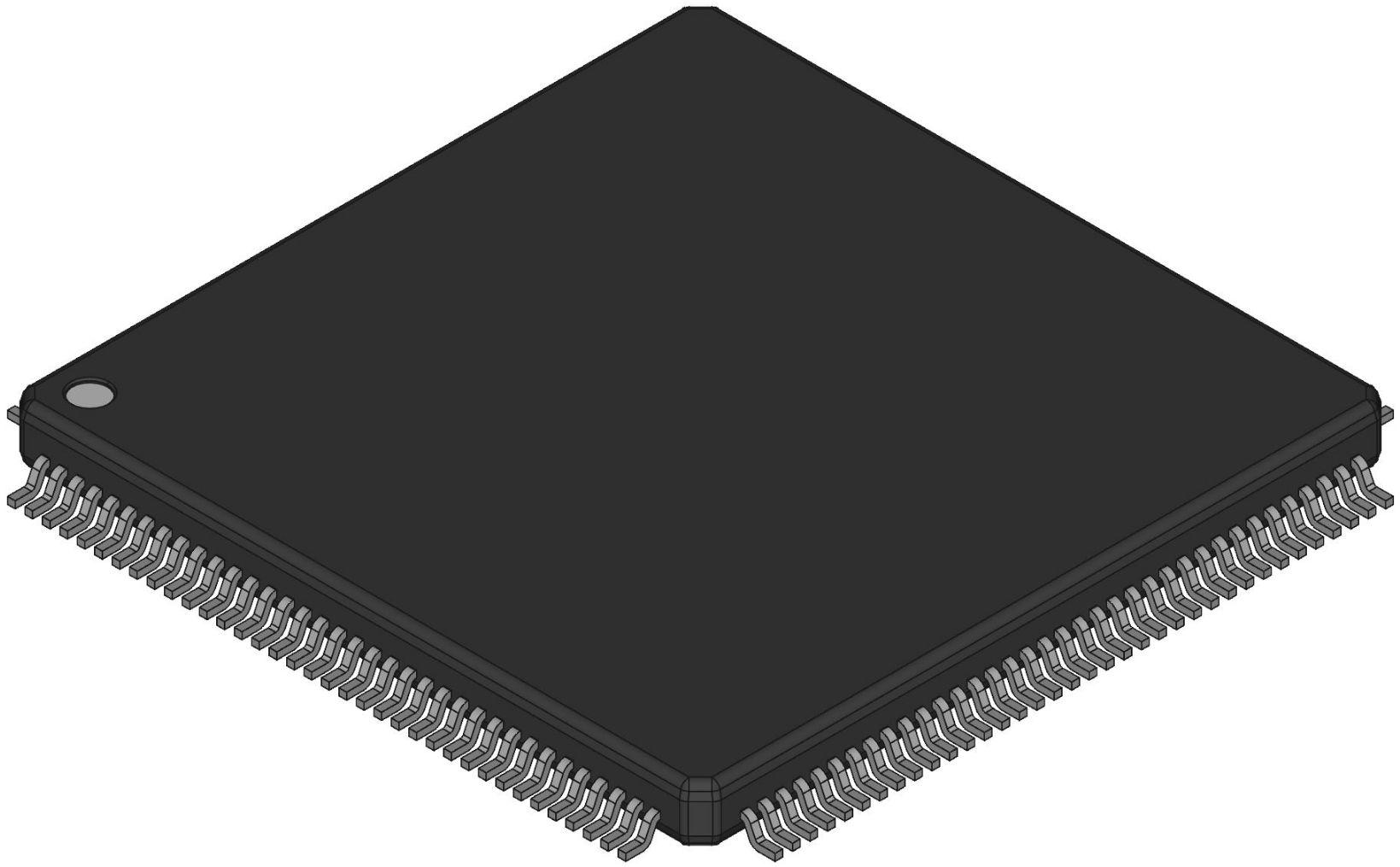

Package / Case:LQFP-144
Core:ARM Cortex M3
Program Memory Size:256 kB
Data Bus Width:32 bit
ADC Resolution:12 bit
Maximum Clock Frequency:72 MHz
Number of I/Os:112 I/O
Data RAM Size:64 kB
Operating Supply Voltage:2 V to 3.6 V
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Packaging:Tray
Height:1.4 mm
Length:20 mm
Program Memory Type:Flash
Width:20 mm
Brand:STMicroelectronics
Data RAM Type:SRAM
Interface Type:CAN, I2C, SPI, USART
Moisture Sensitive:Yes
Number of ADC Channels:16 Channel
Number of Timers/Counters:8 Timer
Processor Series:ARM Cortex M
Product Type:ARM Microcontrollers – MCU
Factory Pack Quantity:360
Subcategory:Microcontrollers – MCU
Supply Voltage – Max:3.6 V
Supply Voltage – Min:2 V
Tradename:STM32
Unit Weight:0.045518 oz
Manufacturer: STMicroelectronics
MFG Part #: STM32F103ZCT6
