Description

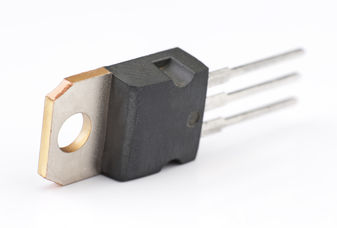

STP18NM60N STMicroelectronics MOSFET N-channel 600 V 0.27 ohm 13A MDmesh 110W 3-Pin(3+Tab) TO-220 Tube RoHS
Specifications
Manufacturer: STMicroelectronics
Product Category: MOSFET
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds – Drain-Source Breakdown Voltage: 600 V
Id – Continuous Drain Current: 13 A
Rds On – Drain-Source Resistance: 260 mOhms
Vgs – Gate-Source Voltage: – 25 V, + 25 V
Vgs th – Gate-Source Threshold Voltage: 2 V
Qg – Gate Charge: 35 nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Pd – Power Dissipation: 110 W
Channel Mode: Enhancement
Tradename: MDmesh
Packaging: Tube
Configuration: Single
Series: STP18NM60N
Transistor Type: 1 N-Channel
Brand: STMicroelectronics
Fall Time: 25 ns
Product Type: MOSFET
Rise Time: 15 ns
Factory Pack Quantity: 1000
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 55 ns
Typical Turn-On Delay Time: 12 ns
Unit Weight: 0.068784 oz
Manufacturer: STMicroelectronics
MFG Part #: STP18NM60N
