Description

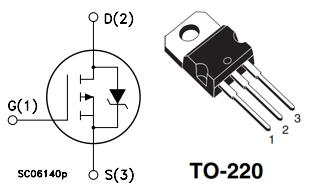

STP80PF55 STMicroelectronics P-Channel Power MOSFET Transistor P-CH 55V 80A 3-Pin(3+Tab) TO-220 Tube Lead free / RoHS: Compliant
STMicroelectronics is a global independent semiconductor company and a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions, STMicroelectronics is at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today’s convergence trends.
Categories Discrete Semiconductor Products
Transistors – FETs, MOSFETs – Single
Manufacturer STMicroelectronics
Series STripFET II
Packaging ? Tube ?
Part Status Obsolete
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 55V
Current – Continuous Drain (Id) @ 25C 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 18 mOhm @ 40A, 10V
Vgs(th) (Max) @ Id 4V @ 250A
Gate Charge (Qg) (Max) @ Vgs 258nC @ 10V
Vgs (Max) 16V
Input Capacitance (Ciss) (Max) @ Vds 5500pF @ 25V
FET Feature –
Power Dissipation (Max) 300W (Tc)
Operating Temperature -55C ~ 175C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-220AB
Package / Case TO-220-3
Manufacturer Part Number: STP80PF55
Manufacturer: STMicroelectronics
